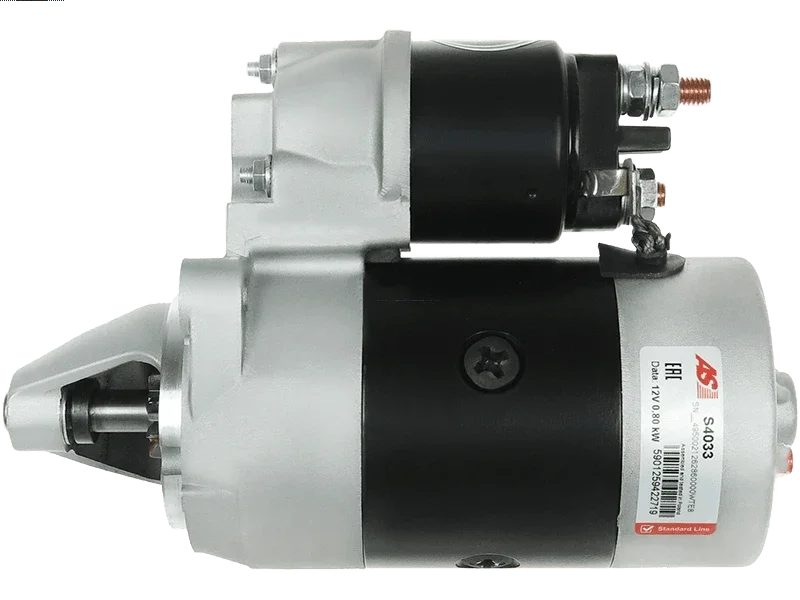

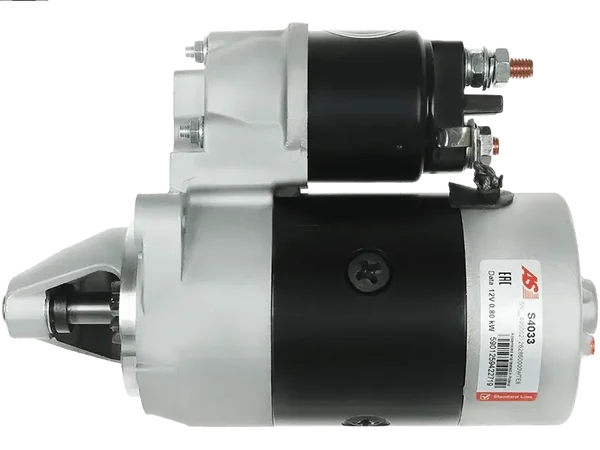

Démarreur Magneti-Marelli 63222908
Démarreur Magneti-Marelli 63222908
Référence : S4033
Référence 0E : 63222908
EAN : 5901259422719
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 0.80
Rotation du demarreur CW
Taille A [ mm ] 62.00
Taille B [ mm ] 13.00
Nombre de dents [ qty. ] 9
Nombre de dents (s'insère dans) [ qty. ] 9
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 207.00
O.1 [ mm ] 90.00
O.2 [ mm ] 53.00
O.3 [ mm ] 67.00
C.1 [ mm ] M8x1.25
C.2 [ mm ] M8x1.25
C.3 [ mm ] M8x1.25
Références démarreurs compatibles
110365CARGO
111585CARGO
DRS7041DELCO
DRS7041NDELCO
DRS7041XDELCO
DSN585DENSO
3914191FIAT
3915113FIAT
4229113FIAT
4229114FIAT
4401806FIAT
4468806FIAT
46231500FIAT
46231504FIAT
46231505FIAT
46406970FIAT
46432301FIAT
46465273FIAT
46797350FIAT
5972684FIAT
71721244FIAT
71721245FIAT
71782312FIAT
71782313FIAT
71782314FIAT
7668988FIAT
77175430FIAT
77201430FIAT
7737262FIAT
8EA012526-811HELLA
8EA737273-001HELLA
IS0586ISKRA / LETRIKA
63222836MAGNETI MARELLIListe
63222837MAGNETI MARELLIListe
63222897MAGNETI MARELLIListe
63222905MAGNETI MARELLIListe
63222908MAGNETI MARELLIListe
943222836MAGNETI MARELLI
0003914191VW
0003974104VW
HB90800002VW
HB90800004VW
SE21908000VW
SE21908000AVW
XO39466650VW
XO39741040VW
PRSL1383EFFE
STRL1383EFFE
CGB-52257AINDE
STA0048RBOVEZ
CST30113ASCASCO
CST30113ESCASCO
CST30113GSCASCO
CST30113OSCASCO
CST30113RSCASCO
STR00295ELECTROLOG
STR9076ELECTROLOG
25-2257ELSTOCK
220162AERA
220162RERA
SG0141GHIBAUDI
GS222905-AGPARTS
GS222905M-RGPARTS
SS222905-AGPARTS
SS222905M-RGPARTS
CS1038HC PARTS
CS90HC PARTS
42001222HERTH+BUSS
STE1038KRAUF
101038KUHNER
1090KUHNER
LRS00234LUCAS
LRS234LUCAS
5030230MEAT & DORIA
88212700POWERMAX
500.013.093.050PSH
500.013.093.058PSH
500.013.093.265PSH
500.515.093.265PSH
20404311BNREAL
20404311ELREAL
20404311OEREAL
20404311RCREAL
20404311REREAL
335650RHIAG
6030113.0SANDO
6030113.1SANDO
6030113.2SANDO
6030113.3SANDO
6030113.4SANDO
S12MA0055A2SIDAT
MAV1030ASIOM
STX200183STARDAX
STX200183RSTARDAX
STX200329STARDAX
STX200501STARDAX
30191RWAI / TRANSPO
DENDSN585WOODAUTO
MAHMS382WOODAUTO
STR52001WOODAUTO
STR52020WOODAUTO
Convient pour :
AUTOBIANCHI A 112 0.9 [A112A5.000] 10.1969-12.1972
AUTOBIANCHI A 112 0.9 [A112A5.000] 01.1976-12.1978
AUTOBIANCHI A 112 0.9 E [A112A5.000] 01.1973-12.1977
AUTOBIANCHI A 112 0.9 Junior [A112A5.000] 07.1975-12.1985
AUTOBIANCHI A 112 0.9 Junior [A112B2.000] 07.1975-12.1985
AUTOBIANCHI A 112 1.0 Abarth [A112A1.000] 09.1971-12.1975
AUTOBIANCHI A 112 1.0 Abarth [A112A2.000] 01.1974-12.1984
AUTOBIANCHI A 112 1.0 E [A112B1.000] 11.1977-12.1985
AUTOBIANCHI A 112 1.0 Elite [A112B1.000] 11.1977-12.1985
AUTOBIANCHI A 112 1.0 LX [A112B1.000] 11.1977-12.1985
FIAT 127 0.9 [100GL.000] 09.1971-12.1984
FIAT Panda 1000 [156A3.000] 01.1985-12.1992
FIAT 127 0.9 [100GL.048] 06.1971-05.1983
FIAT 127P 0.9 [100GL.000] 10.1969-10.1976
FIAT Panda 750 01.1986-01.1995
FIAT Panda 750 [141B.000] 01.1986-07.1992
FIAT Seicento 0.9 [1170A1.046] 11.1997-12.2008
FIAT Panda 750 [156A4.000] 01.1986-10.2003
FIAT Seicento 0.9 [1170A1.046] 01.1998-01.2010
FIAT Panda 750 Cat 01.1995-10.2003
FIAT Cinquecento 0.9 [170A1.000] 07.1991-12.1993
FIAT Panda 800 [100GL6.000] 02.1981-12.1985
FIAT Cinquecento 0.9 i.e. [170A1.046] 07.1991-09.1994
FIAT Panda 900 [100GL3.000] 10.1980-06.1994
FIAT Cinquecento 0.9 i.e. S [1170A1.000] 07.1991-07.1999
FIAT Panda 900 [1170A1.046] 04.1992-12.1996
FIAT Cinquecento 0.9 i.e. S [1170A1.046] 07.1991-07.1999
FIAT Panda 900 [146A.000] 10.1980-06.1994
FIAT Panda 950 4x4 [A112B1.054] 09.1983-12.1986
FIAT Uno 45 0.9 [146A.000] 03.1983-09.1992
FIAT Uno 45 0.9 [146A1.000] 03.1983-09.1992
FIAT Uno 45 i.e. 1.0 [156A2.246] 04.1984-10.1995
FIAT Fiorino 900 [100GL.000] 10.1977-10.1986
FIAT 600 0.9 [1170A1.046] 11.1997-12.2008
FIAT 600 0.9 [1170A1.046] 01.1998-01.2010
INNOCENTI Koral 45 [100GL.064] 01.1990-12.1992
LANCIA A 112 0.9 Junior [A112A.000] 03.1981-06.1986
LANCIA A 112 0.9 Junior [A112A5.000] 03.1981-06.1986
LANCIA A 112 0.9 Junior [A112B2.000] 03.1981-06.1986
LANCIA A 112 1.0 LX [A112B1.000] 03.1984-12.1986
SEAT Ronda 1.2 [124B6.000] 08.1983-05.1985
SEAT Ronda 1.5 [021A2000] 09.1984-12.1986
SEAT Ibiza 1.5 [021A2000] 11.1984-05.1993
SEAT Ronda 1.6 [022A000] 08.1983-09.1985
SEAT Ibiza 1.5 i [021B.2000] 10.1986-05.1993
SEAT Ronda 1.6 [138AR6.000] 08.1983-09.1985
SEAT Ibiza 1.5 i Cat [021C.2000] 10.1986-05.1993
SEAT Ronda 1.7 D [022A.5000] 06.1982-12.1986
SEAT Terra 0.9 [09NCA] 01.1987-12.1995
SEAT Terra 0.9 Cat [09NCB] 02.1992-12.1994
SEAT Ibiza 1.2 [021A1000] 11.1984-12.1993
SEAT Malaga 1.2 [021A1000] 05.1985-12.1993
SEAT Malaga 1.5 [021A2000] 05.1985-12.1993
SEAT Malaga 1.5 i [021B.2000] 01.1987-12.1993
SEAT Malaga 1.5 i Cat [021A2000] 10.1986-12.1993
SEAT Malaga 1.5 i Cat [021C.2000] 10.1986-12.1993
SEAT Malaga 1.5 i Cat [021D.2000] 10.1986-12.1993
SEAT Marbella 0.8 [08NCA] 08.1986-12.1993
SEAT Marbella 0.8 [08NCA] 01.1987-12.1993
SEAT Marbella 0.9 [09NCA] 01.1987-12.1993
SEAT 127 0.9 [A112A5.000] 04.1972-12.1982
SEAT Marbella 0.9 [100GL7000] 01.1987-12.1993
SEAT Marbella 0.9 Cat [08NCB] 11.1996-10.1998
SEAT Ibiza 1.2 i [021C.1000] 01.1989-05.1993
SEAT Marbella 0.9 Cat [09NCB] 01.1987-12.1993
SEAT Marbella 0.9 Cat [09NCB] 01.1990-11.1996
SEAT Marbella 0.9 Cat [100GL7000] 01.1990-11.1996
SEAT Fura 0.9 [09NCA] 03.1984-12.1986
SEAT Fura 0.9 [100GL3000] 01.1982-06.1986
SEAT Fura 0.9 [100GL7000] 03.1984-12.1986
SEAT Fura 0.9 [HB90] 01.1982-06.1986
SEAT Ibiza 0.9 [09NCA] 08.1990-05.1993
SEAT Ibiza 0.9 [146A000] 08.1986-05.1993
SEAT Panda 0.9 [100GL3000] 10.1980-12.1986
SEAT Ibiza 0.9 [146A000] 08.1990-05.1993
SEAT Ronda 1.2 [021A1000] 10.1984-12.1986
