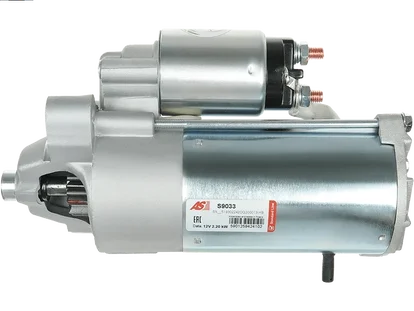

Démarreur Delco DS1271N
Démarreur Delco DS1271N
Démarreur Delco DS1271N
Référence : S9033
Référence 0E : 3M5T11000DC
EAN : 5901259424102
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.20
Rotation du demarreur CW
Taille A [ mm ] 63.00
Taille B [ mm ] -6.00
Nombre de dents [ qty. ] 11
Nombre de dents (s'insère dans) [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 244.00
O.1 [ mm ] 103.00
O.2 [ mm ] 66.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986023380BOSCH
113911CARGO
116157CARGO
DRS0156NDELCO
DRS0161DELCO
DRS0161NDELCO
DRS3969DELCO
DRS3969NDELCO
DS1271NDELCO
DS5079DELCO
DS5079NDELCO
RAS34070DELCO
1231963FORDListe
1233235FORD
1351989FORDListe
1376305FORDListe
1385784FORDListe
1465115FORDListe
1469721FORDListe
1756795FORD
3M5T-11000-DAFORDListe
3M5T-11000-DBFORDListe
3M5T-11000-DCFORDListe
3M5TDCFORD
3M5U-11131-AAFORD
4M5T-11000-FAFORDListe
4M5T-11000-FBFORDListe
4M5T-11000-FCFORDListe
4M5T-11000-FDFORDListe
6G9N-11000-FAFORDListe
6GN9-11000-FAFORD
RE6G9N-11000-FAFORD
RE6G9N11000FAFORD
RM6G9N-11000-FAFORD
RM6G9N11000FAFORD
VP3M5U-11131-AAFORD
8EA011611-001HELLA
8EA012140-391HELLA
8EA738258-281HELLA
6.0142.9IKA
063280036010MAGNETI MARELLI
063721377010MAGNETI MARELLI
63280036MAGNETI MARELLI
943213771010MAGNETI MARELLI
944280802380MAGNETI MARELLI
MQS1377MAGNETI MARELLI
MRS80238MAGNETI MARELLI
MSN8036MAGNETI MARELLI
MSRC1377MAGNETI MARELLI
201019VALEO
438400VALEO
438485VALEO
458637VALEO
30664494VOLVO
30667058VOLVO
30667058-AVOLVO
30667494VOLVO
30667874VOLVO
30795404VOLVO
30795407VOLVO
36000221VOLVO
8603409VOLVO
8697576VOLVO
8697576-AVOLVO
PRSS2233EFFE
STRS2233EFFE
AI-80037AINDE
AI-80037RAINDE
ANM16189XANDEL
ASM1257APEC
AEU1377AUTOELECTRO
AEY2171AUTOELECTRO
NEU1377AUTOELECTRO
STA0426RBOVEZ
CST14112ASCASCO
CST14112GSCASCO
3124CEVAM
12007EAI
STR8015ELECTROLOG
25-3345ELSTOCK
25-3434ELSTOCK
EZ0359ELTA AUTOMOTIVE
220375ERA
SG0389GHIBAUDI
GS001036-AGPARTS
GS001036VI-RGPARTS
SS001036-AGPARTS
SS001036VI-RGPARTS
CS1377HC PARTS
STF1377KRAUF
101377KUHNER
101377MKUHNER
101377VKUHNER
331888LOGISTIK
LRS02171LUCAS
LRS02263LUCAS
LRS2171LUCAS
LRS2263LUCAS
5014058MEAT & DORIA
NPANSM1257NAPA
88212622POWERMAX
590.547.113.020PSH
590.547.113.028PSH
590.547.113.029PSH
590.547.113.230PSH
590.547.113.235PSH
590.547.113.239PSH
20450211BNREAL
20450211OEREAL
311515RHIAG
2S0034RIDEX
STM513ROLLCO
6014112.0SANDO
6014112.1SANDO
S12VS0036SIDAT
S12VS0036A2SIDAT
MAV161120SIOM
STX200024STARDAX
STX200024RSTARDAX
F042S0H071UNIPOINT
20-100-01036VISTEON
20-100-01052VISTEON
32505NWAI / TRANSPO
STR61815WOODAUTO
Convient pour :
FORD Focus C-Max 2.0 TDCi [G6DA] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DB] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DD] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DG] 01.2003-12.2007
FORD C-Max 2.0 TDCi [G6DA] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DB] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DD] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DG] 01.2007-12.2010
FORD Focus 2.0 TDCi [G6DA] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DA] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DB] 01.2004-12.2012
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2015
FORD Focus 2.0 TDCi [G6DB] 01.2006-12.2010
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DG] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DG] 01.2006-12.2010
FORD Focus 2.0 TDCi [IXDA] 01.2008-12.2011
FORD Mondeo 2.0 TDCi [KLBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [LPBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [AZWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWB] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [QXWC] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBB] 01.2007-12.2015
FORD S-Max 2.0 TDCi [UFWA] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [TYBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBB] 01.2007-12.2015
FORD Galaxy 2.0 TDCi [AZWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWB] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWC] 01.2006-12.2015
FORD Kuga 2.0 TDCi [G6DG] 01.2008-12.2012
FORD Kuga 2.0 TDCi [UKDA] 01.2008-12.2012
FORD Kuga 2.0 TDCi 4x4 [G6DG] 01.2008-12.2012
FORD Galaxy 2.0 TDCi [UFWA] 01.2006-12.2015
FORD Kuga 2.0 TDCi 4x4 [UKDA] 01.2008-12.2012
VOLVO V50 2.0 CDi [D4204T2] 12.2003-12.2006
VOLVO V50 2.0 D [D4204T] 04.2004-12.2010
VOLVO S40 2.0 D [D4204T] 01.2004-12.2010
VOLVO C30 2.0 D [D4204T] 10.2006-12.2012
VOLVO S80 2.0 TDi [D4204T] 02.2008-03.2011
VOLVO V70 2.0 D [D4204T] 10.2007-12.2015
VOLVO C70 2.0 D [D4204T] 01.2008-10.2009
Démarreur Delco RAS34070
Démarreur Delco RAS34070
Démarreur Delco RAS34070
Référence : S9033
Référence 0E : 3M5T11000DC
EAN : 5901259424102
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.20
Rotation du demarreur CW
Taille A [ mm ] 63.00
Taille B [ mm ] -6.00
Nombre de dents [ qty. ] 11
Nombre de dents (s'insère dans) [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 244.00
O.1 [ mm ] 103.00
O.2 [ mm ] 66.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986023380BOSCH
113911CARGO
116157CARGO
DRS0156NDELCO
DRS0161DELCO
DRS0161NDELCO
DRS3969DELCO
DRS3969NDELCO
DS1271NDELCO
DS5079DELCO
DS5079NDELCO
RAS34070DELCO
1231963FORDListe
1233235FORD
1351989FORDListe
1376305FORDListe
1385784FORDListe
1465115FORDListe
1469721FORDListe
1756795FORD
3M5T-11000-DAFORDListe
3M5T-11000-DBFORDListe
3M5T-11000-DCFORDListe
3M5TDCFORD
3M5U-11131-AAFORD
4M5T-11000-FAFORDListe
4M5T-11000-FBFORDListe
4M5T-11000-FCFORDListe
4M5T-11000-FDFORDListe
6G9N-11000-FAFORDListe
6GN9-11000-FAFORD
RE6G9N-11000-FAFORD
RE6G9N11000FAFORD
RM6G9N-11000-FAFORD
RM6G9N11000FAFORD
VP3M5U-11131-AAFORD
8EA011611-001HELLA
8EA012140-391HELLA
8EA738258-281HELLA
6.0142.9IKA
063280036010MAGNETI MARELLI
063721377010MAGNETI MARELLI
63280036MAGNETI MARELLI
943213771010MAGNETI MARELLI
944280802380MAGNETI MARELLI
MQS1377MAGNETI MARELLI
MRS80238MAGNETI MARELLI
MSN8036MAGNETI MARELLI
MSRC1377MAGNETI MARELLI
201019VALEO
438400VALEO
438485VALEO
458637VALEO
30664494VOLVO
30667058VOLVO
30667058-AVOLVO
30667494VOLVO
30667874VOLVO
30795404VOLVO
30795407VOLVO
36000221VOLVO
8603409VOLVO
8697576VOLVO
8697576-AVOLVO
PRSS2233EFFE
STRS2233EFFE
AI-80037AINDE
AI-80037RAINDE
ANM16189XANDEL
ASM1257APEC
AEU1377AUTOELECTRO
AEY2171AUTOELECTRO
NEU1377AUTOELECTRO
STA0426RBOVEZ
CST14112ASCASCO
CST14112GSCASCO
3124CEVAM
12007EAI
STR8015ELECTROLOG
25-3345ELSTOCK
25-3434ELSTOCK
EZ0359ELTA AUTOMOTIVE
220375ERA
SG0389GHIBAUDI
GS001036-AGPARTS
GS001036VI-RGPARTS
SS001036-AGPARTS
SS001036VI-RGPARTS
CS1377HC PARTS
STF1377KRAUF
101377KUHNER
101377MKUHNER
101377VKUHNER
331888LOGISTIK
LRS02171LUCAS
LRS02263LUCAS
LRS2171LUCAS
LRS2263LUCAS
5014058MEAT & DORIA
NPANSM1257NAPA
88212622POWERMAX
590.547.113.020PSH
590.547.113.028PSH
590.547.113.029PSH
590.547.113.230PSH
590.547.113.235PSH
590.547.113.239PSH
20450211BNREAL
20450211OEREAL
311515RHIAG
2S0034RIDEX
STM513ROLLCO
6014112.0SANDO
6014112.1SANDO
S12VS0036SIDAT
S12VS0036A2SIDAT
MAV161120SIOM
STX200024STARDAX
STX200024RSTARDAX
F042S0H071UNIPOINT
20-100-01036VISTEON
20-100-01052VISTEON
32505NWAI / TRANSPO
STR61815WOODAUTO
Convient pour :
FORD Focus C-Max 2.0 TDCi [G6DA] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DB] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DD] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DG] 01.2003-12.2007
FORD C-Max 2.0 TDCi [G6DA] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DB] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DD] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DG] 01.2007-12.2010
FORD Focus 2.0 TDCi [G6DA] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DA] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DB] 01.2004-12.2012
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2015
FORD Focus 2.0 TDCi [G6DB] 01.2006-12.2010
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DG] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DG] 01.2006-12.2010
FORD Focus 2.0 TDCi [IXDA] 01.2008-12.2011
FORD Mondeo 2.0 TDCi [KLBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [LPBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [AZWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWB] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [QXWC] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBB] 01.2007-12.2015
FORD S-Max 2.0 TDCi [UFWA] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [TYBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBB] 01.2007-12.2015
FORD Galaxy 2.0 TDCi [AZWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWB] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWC] 01.2006-12.2015
FORD Kuga 2.0 TDCi [G6DG] 01.2008-12.2012
FORD Kuga 2.0 TDCi [UKDA] 01.2008-12.2012
FORD Kuga 2.0 TDCi 4x4 [G6DG] 01.2008-12.2012
FORD Galaxy 2.0 TDCi [UFWA] 01.2006-12.2015
FORD Kuga 2.0 TDCi 4x4 [UKDA] 01.2008-12.2012
VOLVO V50 2.0 CDi [D4204T2] 12.2003-12.2006
VOLVO V50 2.0 D [D4204T] 04.2004-12.2010
VOLVO S40 2.0 D [D4204T] 01.2004-12.2010
VOLVO C30 2.0 D [D4204T] 10.2006-12.2012
VOLVO S80 2.0 TDi [D4204T] 02.2008-03.2011
VOLVO V70 2.0 D [D4204T] 10.2007-12.2015
VOLVO C70 2.0 D [D4204T] 01.2008-10.2009
Démarreur Delco DS5079
Démarreur Delco DS5079
Démarreur Delco DS5079
Référence : S9033
Référence 0E : 3M5T11000DC
EAN : 5901259424102
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.20
Rotation du demarreur CW
Taille A [ mm ] 63.00
Taille B [ mm ] -6.00
Nombre de dents [ qty. ] 11
Nombre de dents (s'insère dans) [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 244.00
O.1 [ mm ] 103.00
O.2 [ mm ] 66.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986023380BOSCH
113911CARGO
116157CARGO
DRS0156NDELCO
DRS0161DELCO
DRS0161NDELCO
DRS3969DELCO
DRS3969NDELCO
DS1271NDELCO
DS5079DELCO
DS5079NDELCO
RAS34070DELCO
1231963FORDListe
1233235FORD
1351989FORDListe
1376305FORDListe
1385784FORDListe
1465115FORDListe
1469721FORDListe
1756795FORD
3M5T-11000-DAFORDListe
3M5T-11000-DBFORDListe
3M5T-11000-DCFORDListe
3M5TDCFORD
3M5U-11131-AAFORD
4M5T-11000-FAFORDListe
4M5T-11000-FBFORDListe
4M5T-11000-FCFORDListe
4M5T-11000-FDFORDListe
6G9N-11000-FAFORDListe
6GN9-11000-FAFORD
RE6G9N-11000-FAFORD
RE6G9N11000FAFORD
RM6G9N-11000-FAFORD
RM6G9N11000FAFORD
VP3M5U-11131-AAFORD
8EA011611-001HELLA
8EA012140-391HELLA
8EA738258-281HELLA
6.0142.9IKA
063280036010MAGNETI MARELLI
063721377010MAGNETI MARELLI
63280036MAGNETI MARELLI
943213771010MAGNETI MARELLI
944280802380MAGNETI MARELLI
MQS1377MAGNETI MARELLI
MRS80238MAGNETI MARELLI
MSN8036MAGNETI MARELLI
MSRC1377MAGNETI MARELLI
201019VALEO
438400VALEO
438485VALEO
458637VALEO
30664494VOLVO
30667058VOLVO
30667058-AVOLVO
30667494VOLVO
30667874VOLVO
30795404VOLVO
30795407VOLVO
36000221VOLVO
8603409VOLVO
8697576VOLVO
8697576-AVOLVO
PRSS2233EFFE
STRS2233EFFE
AI-80037AINDE
AI-80037RAINDE
ANM16189XANDEL
ASM1257APEC
AEU1377AUTOELECTRO
AEY2171AUTOELECTRO
NEU1377AUTOELECTRO
STA0426RBOVEZ
CST14112ASCASCO
CST14112GSCASCO
3124CEVAM
12007EAI
STR8015ELECTROLOG
25-3345ELSTOCK
25-3434ELSTOCK
EZ0359ELTA AUTOMOTIVE
220375ERA
SG0389GHIBAUDI
GS001036-AGPARTS
GS001036VI-RGPARTS
SS001036-AGPARTS
SS001036VI-RGPARTS
CS1377HC PARTS
STF1377KRAUF
101377KUHNER
101377MKUHNER
101377VKUHNER
331888LOGISTIK
LRS02171LUCAS
LRS02263LUCAS
LRS2171LUCAS
LRS2263LUCAS
5014058MEAT & DORIA
NPANSM1257NAPA
88212622POWERMAX
590.547.113.020PSH
590.547.113.028PSH
590.547.113.029PSH
590.547.113.230PSH
590.547.113.235PSH
590.547.113.239PSH
20450211BNREAL
20450211OEREAL
311515RHIAG
2S0034RIDEX
STM513ROLLCO
6014112.0SANDO
6014112.1SANDO
S12VS0036SIDAT
S12VS0036A2SIDAT
MAV161120SIOM
STX200024STARDAX
STX200024RSTARDAX
F042S0H071UNIPOINT
20-100-01036VISTEON
20-100-01052VISTEON
32505NWAI / TRANSPO
STR61815WOODAUTO
Convient pour :
FORD Focus C-Max 2.0 TDCi [G6DA] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DB] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DD] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DG] 01.2003-12.2007
FORD C-Max 2.0 TDCi [G6DA] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DB] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DD] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DG] 01.2007-12.2010
FORD Focus 2.0 TDCi [G6DA] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DA] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DB] 01.2004-12.2012
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2015
FORD Focus 2.0 TDCi [G6DB] 01.2006-12.2010
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DG] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DG] 01.2006-12.2010
FORD Focus 2.0 TDCi [IXDA] 01.2008-12.2011
FORD Mondeo 2.0 TDCi [KLBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [LPBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [AZWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWB] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [QXWC] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBB] 01.2007-12.2015
FORD S-Max 2.0 TDCi [UFWA] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [TYBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBB] 01.2007-12.2015
FORD Galaxy 2.0 TDCi [AZWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWB] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWC] 01.2006-12.2015
FORD Kuga 2.0 TDCi [G6DG] 01.2008-12.2012
FORD Kuga 2.0 TDCi [UKDA] 01.2008-12.2012
FORD Kuga 2.0 TDCi 4x4 [G6DG] 01.2008-12.2012
FORD Galaxy 2.0 TDCi [UFWA] 01.2006-12.2015
FORD Kuga 2.0 TDCi 4x4 [UKDA] 01.2008-12.2012
VOLVO V50 2.0 CDi [D4204T2] 12.2003-12.2006
VOLVO V50 2.0 D [D4204T] 04.2004-12.2010
VOLVO S40 2.0 D [D4204T] 01.2004-12.2010
VOLVO C30 2.0 D [D4204T] 10.2006-12.2012
VOLVO S80 2.0 TDi [D4204T] 02.2008-03.2011
VOLVO V70 2.0 D [D4204T] 10.2007-12.2015
VOLVO C70 2.0 D [D4204T] 01.2008-10.2009
Démarreur Delco DRS3969
Démarreur Delco DRS3969
Démarreur Delco DRS3969
Référence : S9033
Référence 0E : 3M5T11000DC
EAN : 5901259424102
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.20
Rotation du demarreur CW
Taille A [ mm ] 63.00
Taille B [ mm ] -6.00
Nombre de dents [ qty. ] 11
Nombre de dents (s'insère dans) [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 244.00
O.1 [ mm ] 103.00
O.2 [ mm ] 66.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986023380BOSCH
113911CARGO
116157CARGO
DRS0156NDELCO
DRS0161DELCO
DRS0161NDELCO
DRS3969DELCO
DRS3969NDELCO
DS1271NDELCO
DS5079DELCO
DS5079NDELCO
RAS34070DELCO
1231963FORDListe
1233235FORD
1351989FORDListe
1376305FORDListe
1385784FORDListe
1465115FORDListe
1469721FORDListe
1756795FORD
3M5T-11000-DAFORDListe
3M5T-11000-DBFORDListe
3M5T-11000-DCFORDListe
3M5TDCFORD
3M5U-11131-AAFORD
4M5T-11000-FAFORDListe
4M5T-11000-FBFORDListe
4M5T-11000-FCFORDListe
4M5T-11000-FDFORDListe
6G9N-11000-FAFORDListe
6GN9-11000-FAFORD
RE6G9N-11000-FAFORD
RE6G9N11000FAFORD
RM6G9N-11000-FAFORD
RM6G9N11000FAFORD
VP3M5U-11131-AAFORD
8EA011611-001HELLA
8EA012140-391HELLA
8EA738258-281HELLA
6.0142.9IKA
063280036010MAGNETI MARELLI
063721377010MAGNETI MARELLI
63280036MAGNETI MARELLI
943213771010MAGNETI MARELLI
944280802380MAGNETI MARELLI
MQS1377MAGNETI MARELLI
MRS80238MAGNETI MARELLI
MSN8036MAGNETI MARELLI
MSRC1377MAGNETI MARELLI
201019VALEO
438400VALEO
438485VALEO
458637VALEO
30664494VOLVO
30667058VOLVO
30667058-AVOLVO
30667494VOLVO
30667874VOLVO
30795404VOLVO
30795407VOLVO
36000221VOLVO
8603409VOLVO
8697576VOLVO
8697576-AVOLVO
PRSS2233EFFE
STRS2233EFFE
AI-80037AINDE
AI-80037RAINDE
ANM16189XANDEL
ASM1257APEC
AEU1377AUTOELECTRO
AEY2171AUTOELECTRO
NEU1377AUTOELECTRO
STA0426RBOVEZ
CST14112ASCASCO
CST14112GSCASCO
3124CEVAM
12007EAI
STR8015ELECTROLOG
25-3345ELSTOCK
25-3434ELSTOCK
EZ0359ELTA AUTOMOTIVE
220375ERA
SG0389GHIBAUDI
GS001036-AGPARTS
GS001036VI-RGPARTS
SS001036-AGPARTS
SS001036VI-RGPARTS
CS1377HC PARTS
STF1377KRAUF
101377KUHNER
101377MKUHNER
101377VKUHNER
331888LOGISTIK
LRS02171LUCAS
LRS02263LUCAS
LRS2171LUCAS
LRS2263LUCAS
5014058MEAT & DORIA
NPANSM1257NAPA
88212622POWERMAX
590.547.113.020PSH
590.547.113.028PSH
590.547.113.029PSH
590.547.113.230PSH
590.547.113.235PSH
590.547.113.239PSH
20450211BNREAL
20450211OEREAL
311515RHIAG
2S0034RIDEX
STM513ROLLCO
6014112.0SANDO
6014112.1SANDO
S12VS0036SIDAT
S12VS0036A2SIDAT
MAV161120SIOM
STX200024STARDAX
STX200024RSTARDAX
F042S0H071UNIPOINT
20-100-01036VISTEON
20-100-01052VISTEON
32505NWAI / TRANSPO
STR61815WOODAUTO
Convient pour :
FORD Focus C-Max 2.0 TDCi [G6DA] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DB] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DD] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DG] 01.2003-12.2007
FORD C-Max 2.0 TDCi [G6DA] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DB] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DD] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DG] 01.2007-12.2010
FORD Focus 2.0 TDCi [G6DA] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DA] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DB] 01.2004-12.2012
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2015
FORD Focus 2.0 TDCi [G6DB] 01.2006-12.2010
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DG] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DG] 01.2006-12.2010
FORD Focus 2.0 TDCi [IXDA] 01.2008-12.2011
FORD Mondeo 2.0 TDCi [KLBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [LPBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [AZWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWB] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [QXWC] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBB] 01.2007-12.2015
FORD S-Max 2.0 TDCi [UFWA] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [TYBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBB] 01.2007-12.2015
FORD Galaxy 2.0 TDCi [AZWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWB] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWC] 01.2006-12.2015
FORD Kuga 2.0 TDCi [G6DG] 01.2008-12.2012
FORD Kuga 2.0 TDCi [UKDA] 01.2008-12.2012
FORD Kuga 2.0 TDCi 4x4 [G6DG] 01.2008-12.2012
FORD Galaxy 2.0 TDCi [UFWA] 01.2006-12.2015
FORD Kuga 2.0 TDCi 4x4 [UKDA] 01.2008-12.2012
VOLVO V50 2.0 CDi [D4204T2] 12.2003-12.2006
VOLVO V50 2.0 D [D4204T] 04.2004-12.2010
VOLVO S40 2.0 D [D4204T] 01.2004-12.2010
VOLVO C30 2.0 D [D4204T] 10.2006-12.2012
VOLVO S80 2.0 TDi [D4204T] 02.2008-03.2011
VOLVO V70 2.0 D [D4204T] 10.2007-12.2015
VOLVO C70 2.0 D [D4204T] 01.2008-10.2009
Démarreur Delco DRS0161
Démarreur Delco DRS0161
Démarreur Delco DRS0161
Référence : S9033
Référence 0E : 3M5T11000DC
EAN : 5901259424102
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.20
Rotation du demarreur CW
Taille A [ mm ] 63.00
Taille B [ mm ] -6.00
Nombre de dents [ qty. ] 11
Nombre de dents (s'insère dans) [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 244.00
O.1 [ mm ] 103.00
O.2 [ mm ] 66.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986023380BOSCH
113911CARGO
116157CARGO
DRS0156NDELCO
DRS0161DELCO
DRS0161NDELCO
DRS3969DELCO
DRS3969NDELCO
DS1271NDELCO
DS5079DELCO
DS5079NDELCO
RAS34070DELCO
1231963FORDListe
1233235FORD
1351989FORDListe
1376305FORDListe
1385784FORDListe
1465115FORDListe
1469721FORDListe
1756795FORD
3M5T-11000-DAFORDListe
3M5T-11000-DBFORDListe
3M5T-11000-DCFORDListe
3M5TDCFORD
3M5U-11131-AAFORD
4M5T-11000-FAFORDListe
4M5T-11000-FBFORDListe
4M5T-11000-FCFORDListe
4M5T-11000-FDFORDListe
6G9N-11000-FAFORDListe
6GN9-11000-FAFORD
RE6G9N-11000-FAFORD
RE6G9N11000FAFORD
RM6G9N-11000-FAFORD
RM6G9N11000FAFORD
VP3M5U-11131-AAFORD
8EA011611-001HELLA
8EA012140-391HELLA
8EA738258-281HELLA
6.0142.9IKA
063280036010MAGNETI MARELLI
063721377010MAGNETI MARELLI
63280036MAGNETI MARELLI
943213771010MAGNETI MARELLI
944280802380MAGNETI MARELLI
MQS1377MAGNETI MARELLI
MRS80238MAGNETI MARELLI
MSN8036MAGNETI MARELLI
MSRC1377MAGNETI MARELLI
201019VALEO
438400VALEO
438485VALEO
458637VALEO
30664494VOLVO
30667058VOLVO
30667058-AVOLVO
30667494VOLVO
30667874VOLVO
30795404VOLVO
30795407VOLVO
36000221VOLVO
8603409VOLVO
8697576VOLVO
8697576-AVOLVO
PRSS2233EFFE
STRS2233EFFE
AI-80037AINDE
AI-80037RAINDE
ANM16189XANDEL
ASM1257APEC
AEU1377AUTOELECTRO
AEY2171AUTOELECTRO
NEU1377AUTOELECTRO
STA0426RBOVEZ
CST14112ASCASCO
CST14112GSCASCO
3124CEVAM
12007EAI
STR8015ELECTROLOG
25-3345ELSTOCK
25-3434ELSTOCK
EZ0359ELTA AUTOMOTIVE
220375ERA
SG0389GHIBAUDI
GS001036-AGPARTS
GS001036VI-RGPARTS
SS001036-AGPARTS
SS001036VI-RGPARTS
CS1377HC PARTS
STF1377KRAUF
101377KUHNER
101377MKUHNER
101377VKUHNER
331888LOGISTIK
LRS02171LUCAS
LRS02263LUCAS
LRS2171LUCAS
LRS2263LUCAS
5014058MEAT & DORIA
NPANSM1257NAPA
88212622POWERMAX
590.547.113.020PSH
590.547.113.028PSH
590.547.113.029PSH
590.547.113.230PSH
590.547.113.235PSH
590.547.113.239PSH
20450211BNREAL
20450211OEREAL
311515RHIAG
2S0034RIDEX
STM513ROLLCO
6014112.0SANDO
6014112.1SANDO
S12VS0036SIDAT
S12VS0036A2SIDAT
MAV161120SIOM
STX200024STARDAX
STX200024RSTARDAX
F042S0H071UNIPOINT
20-100-01036VISTEON
20-100-01052VISTEON
32505NWAI / TRANSPO
STR61815WOODAUTO
Convient pour :
FORD Focus C-Max 2.0 TDCi [G6DA] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DB] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DD] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DG] 01.2003-12.2007
FORD C-Max 2.0 TDCi [G6DA] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DB] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DD] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DG] 01.2007-12.2010
FORD Focus 2.0 TDCi [G6DA] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DA] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DB] 01.2004-12.2012
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2015
FORD Focus 2.0 TDCi [G6DB] 01.2006-12.2010
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DG] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DG] 01.2006-12.2010
FORD Focus 2.0 TDCi [IXDA] 01.2008-12.2011
FORD Mondeo 2.0 TDCi [KLBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [LPBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [AZWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWB] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [QXWC] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBB] 01.2007-12.2015
FORD S-Max 2.0 TDCi [UFWA] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [TYBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBB] 01.2007-12.2015
FORD Galaxy 2.0 TDCi [AZWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWB] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWC] 01.2006-12.2015
FORD Kuga 2.0 TDCi [G6DG] 01.2008-12.2012
FORD Kuga 2.0 TDCi [UKDA] 01.2008-12.2012
FORD Kuga 2.0 TDCi 4x4 [G6DG] 01.2008-12.2012
FORD Galaxy 2.0 TDCi [UFWA] 01.2006-12.2015
FORD Kuga 2.0 TDCi 4x4 [UKDA] 01.2008-12.2012
VOLVO V50 2.0 CDi [D4204T2] 12.2003-12.2006
VOLVO V50 2.0 D [D4204T] 04.2004-12.2010
VOLVO S40 2.0 D [D4204T] 01.2004-12.2010
VOLVO C30 2.0 D [D4204T] 10.2006-12.2012
VOLVO S80 2.0 TDi [D4204T] 02.2008-03.2011
VOLVO V70 2.0 D [D4204T] 10.2007-12.2015
VOLVO C70 2.0 D [D4204T] 01.2008-10.2009
Démarreur Delco DRS0156N
Démarreur Delco DRS0156N
Démarreur Delco DRS0156N
Référence : S9033
Référence 0E : 3M5T11000DC
EAN : 5901259424102
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.20
Rotation du demarreur CW
Taille A [ mm ] 63.00
Taille B [ mm ] -6.00
Nombre de dents [ qty. ] 11
Nombre de dents (s'insère dans) [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 244.00
O.1 [ mm ] 103.00
O.2 [ mm ] 66.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986023380BOSCH
113911CARGO
116157CARGO
DRS0156NDELCO
DRS0161DELCO
DRS0161NDELCO
DRS3969DELCO
DRS3969NDELCO
DS1271NDELCO
DS5079DELCO
DS5079NDELCO
RAS34070DELCO
1231963FORDListe
1233235FORD
1351989FORDListe
1376305FORDListe
1385784FORDListe
1465115FORDListe
1469721FORDListe
1756795FORD
3M5T-11000-DAFORDListe
3M5T-11000-DBFORDListe
3M5T-11000-DCFORDListe
3M5TDCFORD
3M5U-11131-AAFORD
4M5T-11000-FAFORDListe
4M5T-11000-FBFORDListe
4M5T-11000-FCFORDListe
4M5T-11000-FDFORDListe
6G9N-11000-FAFORDListe
6GN9-11000-FAFORD
RE6G9N-11000-FAFORD
RE6G9N11000FAFORD
RM6G9N-11000-FAFORD
RM6G9N11000FAFORD
VP3M5U-11131-AAFORD
8EA011611-001HELLA
8EA012140-391HELLA
8EA738258-281HELLA
6.0142.9IKA
063280036010MAGNETI MARELLI
063721377010MAGNETI MARELLI
63280036MAGNETI MARELLI
943213771010MAGNETI MARELLI
944280802380MAGNETI MARELLI
MQS1377MAGNETI MARELLI
MRS80238MAGNETI MARELLI
MSN8036MAGNETI MARELLI
MSRC1377MAGNETI MARELLI
201019VALEO
438400VALEO
438485VALEO
458637VALEO
30664494VOLVO
30667058VOLVO
30667058-AVOLVO
30667494VOLVO
30667874VOLVO
30795404VOLVO
30795407VOLVO
36000221VOLVO
8603409VOLVO
8697576VOLVO
8697576-AVOLVO
PRSS2233EFFE
STRS2233EFFE
AI-80037AINDE
AI-80037RAINDE
ANM16189XANDEL
ASM1257APEC
AEU1377AUTOELECTRO
AEY2171AUTOELECTRO
NEU1377AUTOELECTRO
STA0426RBOVEZ
CST14112ASCASCO
CST14112GSCASCO
3124CEVAM
12007EAI
STR8015ELECTROLOG
25-3345ELSTOCK
25-3434ELSTOCK
EZ0359ELTA AUTOMOTIVE
220375ERA
SG0389GHIBAUDI
GS001036-AGPARTS
GS001036VI-RGPARTS
SS001036-AGPARTS
SS001036VI-RGPARTS
CS1377HC PARTS
STF1377KRAUF
101377KUHNER
101377MKUHNER
101377VKUHNER
331888LOGISTIK
LRS02171LUCAS
LRS02263LUCAS
LRS2171LUCAS
LRS2263LUCAS
5014058MEAT & DORIA
NPANSM1257NAPA
88212622POWERMAX
590.547.113.020PSH
590.547.113.028PSH
590.547.113.029PSH
590.547.113.230PSH
590.547.113.235PSH
590.547.113.239PSH
20450211BNREAL
20450211OEREAL
311515RHIAG
2S0034RIDEX
STM513ROLLCO
6014112.0SANDO
6014112.1SANDO
S12VS0036SIDAT
S12VS0036A2SIDAT
MAV161120SIOM
STX200024STARDAX
STX200024RSTARDAX
F042S0H071UNIPOINT
20-100-01036VISTEON
20-100-01052VISTEON
32505NWAI / TRANSPO
STR61815WOODAUTO
Convient pour :
FORD Focus C-Max 2.0 TDCi [G6DA] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DB] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DD] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DG] 01.2003-12.2007
FORD C-Max 2.0 TDCi [G6DA] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DB] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DD] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DG] 01.2007-12.2010
FORD Focus 2.0 TDCi [G6DA] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DA] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DB] 01.2004-12.2012
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2015
FORD Focus 2.0 TDCi [G6DB] 01.2006-12.2010
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DG] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DG] 01.2006-12.2010
FORD Focus 2.0 TDCi [IXDA] 01.2008-12.2011
FORD Mondeo 2.0 TDCi [KLBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [LPBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [AZWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWB] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [QXWC] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBB] 01.2007-12.2015
FORD S-Max 2.0 TDCi [UFWA] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [TYBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBB] 01.2007-12.2015
FORD Galaxy 2.0 TDCi [AZWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWB] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWC] 01.2006-12.2015
FORD Kuga 2.0 TDCi [G6DG] 01.2008-12.2012
FORD Kuga 2.0 TDCi [UKDA] 01.2008-12.2012
FORD Kuga 2.0 TDCi 4x4 [G6DG] 01.2008-12.2012
FORD Galaxy 2.0 TDCi [UFWA] 01.2006-12.2015
FORD Kuga 2.0 TDCi 4x4 [UKDA] 01.2008-12.2012
VOLVO V50 2.0 CDi [D4204T2] 12.2003-12.2006
VOLVO V50 2.0 D [D4204T] 04.2004-12.2010
VOLVO S40 2.0 D [D4204T] 01.2004-12.2010
VOLVO C30 2.0 D [D4204T] 10.2006-12.2012
VOLVO S80 2.0 TDi [D4204T] 02.2008-03.2011
VOLVO V70 2.0 D [D4204T] 10.2007-12.2015
VOLVO C70 2.0 D [D4204T] 01.2008-10.2009

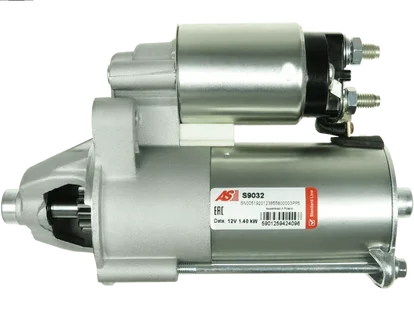

Démarreur Delco RAS34067
Démarreur Delco RAS34067
Démarreur Delco RAS34067
Référence : S9032
Référence 0E : 2T14-11000-BA
EAN : 5901259424096
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.40
Rotation du demarreur CW
Taille A [ mm ] 76.00
Taille B [ mm ] 15.00
Nombre de dents [ qty. ] 10
Nombre de dents (s'insère dans) [ qty. ] 10
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 209.00
O.1 [ mm ] 103.00
O.2 [ mm ] 67.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986022840BOSCH
1986S00222BOSCH
113910CARGO
DRS0160DELCO
DRS0160NDELCO
DRS3956DELCO
DRS3956NDELCO
DS1270DELCO
DS5066DELCO
DS5066NDELCO
RAS34067DELCO
1345314FORD
1477973FORDListe
1477974FORD
1756793FORD
1904988FORD
2T14-11000-AAFORDListe
2T14-11000-BAFORDListe
2T14-11000-BBFORDListe
2T14-11000-BCFORDListe
2T14-11000-CAFORDListe
2T14-11000-CBFORDListe
2T14-11000-CCFORDListe
2T1411000AAFORDListe
2T1411000ABFORD
2T1411000CAFORDListe
2T1411000CBFORDListe
2T1411000CCFORDListe
2T14BAFORD
4033064FORDListe
4424968FORDListe
4443760FORDListe
RE2T1411000BCFORD
8EA011610-261HELLA
8EA738258-201HELLA
063280034010MAGNETI MARELLI
063720022010MAGNETI MARELLI
063721336010MAGNETI MARELLI
359001400010MAGNETI MARELLI
63280034MAGNETI MARELLI
943213361010MAGNETI MARELLI
944280801340MAGNETI MARELLI
MO0001MAMAGNETI MARELLI
MQS1336MAGNETI MARELLI
MRS80134MAGNETI MARELLI
MSN8034MAGNETI MARELLI
35259860PRESTOLITEListe
201039VALEO
458380VALEO
458448VALEO
460469VALEO
PRSL1103EFFE
STRL1103EFFE
AC-CBS1336ACAUTO
AI-80036AINDE
CGB-53155AINDE
10439776ALANKO
ANM16176ANDEL
ANM16176XANDEL
ASM1418APEC
A78060ATL AUTOTECHNIK
AEY1627AUTOELECTRO
NEY1627AUTOELECTRO
SFO107AUTOTEAM
SFO107AAUTOTEAM
BST2334BORG & BECK
STA0286RBOVEZ
CST14107ASCASCO
CST14107GSCASCO
3126CEVAM
1265011CTR
319059102DRI
13.44003DT SPARE PARTS
11998EAI
STR8974ELECTROLOG
25-3155ELSTOCK
EZ0517ELTA AUTOMOTIVE
220374ERA
220374AERA
220374RERA
1638121180EUROREPAR
11090053EUROTEC
2-0076EXACT
106619FARCOM
107129FARCOM
101591FEBI BILSTEIN
8080134FRIESEN
SG0393GHIBAUDI
G201336-NGPARTS
GS001034-AGPARTS
GS001034VI-RGPARTS
SS001034-AGPARTS
SS001034VI-RGPARTS
534376HART
CS1336HC PARTS
3122885HENKEL PARTS
3122887HENKEL PARTS
42001034HERTH+BUSS
H5014065HOFFER
1590301100JP GROUP
STF1336KRAUF
101336KUHNER
101336VKUHNER
331372LOGISTIK
LRS01627LUCAS
LRS1627LUCAS
13663MAPCO
5014065MEAT & DORIA
333003MEC-DIESEL
NPANSM1418NAPA
4722880NK
88212274POWERMAX
IR9670PROTECH
590.548.103.020PSH
590.548.103.028PSH
590.548.103.230PSH
590.548.103.235PSH
590.548.103.395PSH
590.548.103.608PSH
QRS2304QUINTON HAZELL
20450701BNREAL
20450701OEREAL
011-001-000327RREMANTE
2S0052RIDEX
RNL2T14BARNL
STM750ROLLCO
6014107.0SANDO
6014107.1SANDO
S12VS0054SIDAT
S12VS0054A2SIDAT
MAV161070SIOM
MAV161070ASIOM
FO9067SNRA
STX200139STARDAX
STX200139RSTARDAX
STX200345STARDAX
SKSTR-0330051STARK
SX2177STARLINE
998ST11STARTCAR
06-10138-SXSTELLOX
TT16326TESLA
RE83525NTHE NEW LINE
ST01229TMI
20-100-01034VISTEON
32510NWAI / TRANSPO
32510RWAI / TRANSPO
STR61804WOODAUTO
STR61818WOODAUTO
Convient pour :
FORD Tourneo Connect 1.8 Di [P7PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [P7PB] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPC] 06.2002-12.2013
FORD Transit Connect 1.8 Di [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPD] 06.2002-12.2013
FORD Transit Connect 1.8 Di [P7PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P7PA] 06.2002-12.2013
FORD Transit Connect 1.8 Di [P7PB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P7PB] 06.2002-12.2013
FORD Transit Connect 1.8 Di [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PC] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPC] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PD] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPD] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [R2PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [R3PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PC] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PD] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [RWPE] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [R3PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [RWPF] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [P7PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [RWPE] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [P7PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [RWPF] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [BHPA] 06.2002-12.2013
Démarreur Delco DS5066
Démarreur Delco DS5066
Démarreur Delco DS5066
Référence : S9032
Référence 0E : 2T14-11000-BA
EAN : 5901259424096
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.40
Rotation du demarreur CW
Taille A [ mm ] 76.00
Taille B [ mm ] 15.00
Nombre de dents [ qty. ] 10
Nombre de dents (s'insère dans) [ qty. ] 10
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 209.00
O.1 [ mm ] 103.00
O.2 [ mm ] 67.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986022840BOSCH
1986S00222BOSCH
113910CARGO
DRS0160DELCO
DRS0160NDELCO
DRS3956DELCO
DRS3956NDELCO
DS1270DELCO
DS5066DELCO
DS5066NDELCO
RAS34067DELCO
1345314FORD
1477973FORDListe
1477974FORD
1756793FORD
1904988FORD
2T14-11000-AAFORDListe
2T14-11000-BAFORDListe
2T14-11000-BBFORDListe
2T14-11000-BCFORDListe
2T14-11000-CAFORDListe
2T14-11000-CBFORDListe
2T14-11000-CCFORDListe
2T1411000AAFORDListe
2T1411000ABFORD
2T1411000CAFORDListe
2T1411000CBFORDListe
2T1411000CCFORDListe
2T14BAFORD
4033064FORDListe
4424968FORDListe
4443760FORDListe
RE2T1411000BCFORD
8EA011610-261HELLA
8EA738258-201HELLA
063280034010MAGNETI MARELLI
063720022010MAGNETI MARELLI
063721336010MAGNETI MARELLI
359001400010MAGNETI MARELLI
63280034MAGNETI MARELLI
943213361010MAGNETI MARELLI
944280801340MAGNETI MARELLI
MO0001MAMAGNETI MARELLI
MQS1336MAGNETI MARELLI
MRS80134MAGNETI MARELLI
MSN8034MAGNETI MARELLI
35259860PRESTOLITEListe
201039VALEO
458380VALEO
458448VALEO
460469VALEO
PRSL1103EFFE
STRL1103EFFE
AC-CBS1336ACAUTO
AI-80036AINDE
CGB-53155AINDE
10439776ALANKO
ANM16176ANDEL
ANM16176XANDEL
ASM1418APEC
A78060ATL AUTOTECHNIK
AEY1627AUTOELECTRO
NEY1627AUTOELECTRO
SFO107AUTOTEAM
SFO107AAUTOTEAM
BST2334BORG & BECK
STA0286RBOVEZ
CST14107ASCASCO
CST14107GSCASCO
3126CEVAM
1265011CTR
319059102DRI
13.44003DT SPARE PARTS
11998EAI
STR8974ELECTROLOG
25-3155ELSTOCK
EZ0517ELTA AUTOMOTIVE
220374ERA
220374AERA
220374RERA
1638121180EUROREPAR
11090053EUROTEC
2-0076EXACT
106619FARCOM
107129FARCOM
101591FEBI BILSTEIN
8080134FRIESEN
SG0393GHIBAUDI
G201336-NGPARTS
GS001034-AGPARTS
GS001034VI-RGPARTS
SS001034-AGPARTS
SS001034VI-RGPARTS
534376HART
CS1336HC PARTS
3122885HENKEL PARTS
3122887HENKEL PARTS
42001034HERTH+BUSS
H5014065HOFFER
1590301100JP GROUP
STF1336KRAUF
101336KUHNER
101336VKUHNER
331372LOGISTIK
LRS01627LUCAS
LRS1627LUCAS
13663MAPCO
5014065MEAT & DORIA
333003MEC-DIESEL
NPANSM1418NAPA
4722880NK
88212274POWERMAX
IR9670PROTECH
590.548.103.020PSH
590.548.103.028PSH
590.548.103.230PSH
590.548.103.235PSH
590.548.103.395PSH
590.548.103.608PSH
QRS2304QUINTON HAZELL
20450701BNREAL
20450701OEREAL
011-001-000327RREMANTE
2S0052RIDEX
RNL2T14BARNL
STM750ROLLCO
6014107.0SANDO
6014107.1SANDO
S12VS0054SIDAT
S12VS0054A2SIDAT
MAV161070SIOM
MAV161070ASIOM
FO9067SNRA
STX200139STARDAX
STX200139RSTARDAX
STX200345STARDAX
SKSTR-0330051STARK
SX2177STARLINE
998ST11STARTCAR
06-10138-SXSTELLOX
TT16326TESLA
RE83525NTHE NEW LINE
ST01229TMI
20-100-01034VISTEON
32510NWAI / TRANSPO
32510RWAI / TRANSPO
STR61804WOODAUTO
STR61818WOODAUTO
Convient pour :
FORD Tourneo Connect 1.8 Di [P7PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [P7PB] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPC] 06.2002-12.2013
FORD Transit Connect 1.8 Di [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPD] 06.2002-12.2013
FORD Transit Connect 1.8 Di [P7PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P7PA] 06.2002-12.2013
FORD Transit Connect 1.8 Di [P7PB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P7PB] 06.2002-12.2013
FORD Transit Connect 1.8 Di [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PC] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPC] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PD] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPD] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [R2PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [R3PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PC] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PD] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [RWPE] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [R3PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [RWPF] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [P7PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [RWPE] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [P7PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [RWPF] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [BHPA] 06.2002-12.2013
Démarreur Delco DS1270
Démarreur Delco DS1270
Démarreur Delco DS1270
Référence : S9032
Référence 0E : 2T14-11000-BA
EAN : 5901259424096
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.40
Rotation du demarreur CW
Taille A [ mm ] 76.00
Taille B [ mm ] 15.00
Nombre de dents [ qty. ] 10
Nombre de dents (s'insère dans) [ qty. ] 10
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 209.00
O.1 [ mm ] 103.00
O.2 [ mm ] 67.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986022840BOSCH
1986S00222BOSCH
113910CARGO
DRS0160DELCO
DRS0160NDELCO
DRS3956DELCO
DRS3956NDELCO
DS1270DELCO
DS5066DELCO
DS5066NDELCO
RAS34067DELCO
1345314FORD
1477973FORDListe
1477974FORD
1756793FORD
1904988FORD
2T14-11000-AAFORDListe
2T14-11000-BAFORDListe
2T14-11000-BBFORDListe
2T14-11000-BCFORDListe
2T14-11000-CAFORDListe
2T14-11000-CBFORDListe
2T14-11000-CCFORDListe
2T1411000AAFORDListe
2T1411000ABFORD
2T1411000CAFORDListe
2T1411000CBFORDListe
2T1411000CCFORDListe
2T14BAFORD
4033064FORDListe
4424968FORDListe
4443760FORDListe
RE2T1411000BCFORD
8EA011610-261HELLA
8EA738258-201HELLA
063280034010MAGNETI MARELLI
063720022010MAGNETI MARELLI
063721336010MAGNETI MARELLI
359001400010MAGNETI MARELLI
63280034MAGNETI MARELLI
943213361010MAGNETI MARELLI
944280801340MAGNETI MARELLI
MO0001MAMAGNETI MARELLI
MQS1336MAGNETI MARELLI
MRS80134MAGNETI MARELLI
MSN8034MAGNETI MARELLI
35259860PRESTOLITEListe
201039VALEO
458380VALEO
458448VALEO
460469VALEO
PRSL1103EFFE
STRL1103EFFE
AC-CBS1336ACAUTO
AI-80036AINDE
CGB-53155AINDE
10439776ALANKO
ANM16176ANDEL
ANM16176XANDEL
ASM1418APEC
A78060ATL AUTOTECHNIK
AEY1627AUTOELECTRO
NEY1627AUTOELECTRO
SFO107AUTOTEAM
SFO107AAUTOTEAM
BST2334BORG & BECK
STA0286RBOVEZ
CST14107ASCASCO
CST14107GSCASCO
3126CEVAM
1265011CTR
319059102DRI
13.44003DT SPARE PARTS
11998EAI
STR8974ELECTROLOG
25-3155ELSTOCK
EZ0517ELTA AUTOMOTIVE
220374ERA
220374AERA
220374RERA
1638121180EUROREPAR
11090053EUROTEC
2-0076EXACT
106619FARCOM
107129FARCOM
101591FEBI BILSTEIN
8080134FRIESEN
SG0393GHIBAUDI
G201336-NGPARTS
GS001034-AGPARTS
GS001034VI-RGPARTS
SS001034-AGPARTS
SS001034VI-RGPARTS
534376HART
CS1336HC PARTS
3122885HENKEL PARTS
3122887HENKEL PARTS
42001034HERTH+BUSS
H5014065HOFFER
1590301100JP GROUP
STF1336KRAUF
101336KUHNER
101336VKUHNER
331372LOGISTIK
LRS01627LUCAS
LRS1627LUCAS
13663MAPCO
5014065MEAT & DORIA
333003MEC-DIESEL
NPANSM1418NAPA
4722880NK
88212274POWERMAX
IR9670PROTECH
590.548.103.020PSH
590.548.103.028PSH
590.548.103.230PSH
590.548.103.235PSH
590.548.103.395PSH
590.548.103.608PSH
QRS2304QUINTON HAZELL
20450701BNREAL
20450701OEREAL
011-001-000327RREMANTE
2S0052RIDEX
RNL2T14BARNL
STM750ROLLCO
6014107.0SANDO
6014107.1SANDO
S12VS0054SIDAT
S12VS0054A2SIDAT
MAV161070SIOM
MAV161070ASIOM
FO9067SNRA
STX200139STARDAX
STX200139RSTARDAX
STX200345STARDAX
SKSTR-0330051STARK
SX2177STARLINE
998ST11STARTCAR
06-10138-SXSTELLOX
TT16326TESLA
RE83525NTHE NEW LINE
ST01229TMI
20-100-01034VISTEON
32510NWAI / TRANSPO
32510RWAI / TRANSPO
STR61804WOODAUTO
STR61818WOODAUTO
Convient pour :
FORD Tourneo Connect 1.8 Di [P7PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [P7PB] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPC] 06.2002-12.2013
FORD Transit Connect 1.8 Di [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPD] 06.2002-12.2013
FORD Transit Connect 1.8 Di [P7PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P7PA] 06.2002-12.2013
FORD Transit Connect 1.8 Di [P7PB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P7PB] 06.2002-12.2013
FORD Transit Connect 1.8 Di [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PC] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPC] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PD] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPD] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [R2PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [R3PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PC] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PD] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [RWPE] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [R3PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [RWPF] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [P7PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [RWPE] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [P7PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [RWPF] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [BHPA] 06.2002-12.2013
Démarreur Delco DRS3956
Démarreur Delco DRS3956
Démarreur Delco DRS3956
Référence : S9032
Référence 0E : 2T14-11000-BA
EAN : 5901259424096
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.40
Rotation du demarreur CW
Taille A [ mm ] 76.00
Taille B [ mm ] 15.00
Nombre de dents [ qty. ] 10
Nombre de dents (s'insère dans) [ qty. ] 10
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 209.00
O.1 [ mm ] 103.00
O.2 [ mm ] 67.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986022840BOSCH
1986S00222BOSCH
113910CARGO
DRS0160DELCO
DRS0160NDELCO
DRS3956DELCO
DRS3956NDELCO
DS1270DELCO
DS5066DELCO
DS5066NDELCO
RAS34067DELCO
1345314FORD
1477973FORDListe
1477974FORD
1756793FORD
1904988FORD
2T14-11000-AAFORDListe
2T14-11000-BAFORDListe
2T14-11000-BBFORDListe
2T14-11000-BCFORDListe
2T14-11000-CAFORDListe
2T14-11000-CBFORDListe
2T14-11000-CCFORDListe
2T1411000AAFORDListe
2T1411000ABFORD
2T1411000CAFORDListe
2T1411000CBFORDListe
2T1411000CCFORDListe
2T14BAFORD
4033064FORDListe
4424968FORDListe
4443760FORDListe
RE2T1411000BCFORD
8EA011610-261HELLA
8EA738258-201HELLA
063280034010MAGNETI MARELLI
063720022010MAGNETI MARELLI
063721336010MAGNETI MARELLI
359001400010MAGNETI MARELLI
63280034MAGNETI MARELLI
943213361010MAGNETI MARELLI
944280801340MAGNETI MARELLI
MO0001MAMAGNETI MARELLI
MQS1336MAGNETI MARELLI
MRS80134MAGNETI MARELLI
MSN8034MAGNETI MARELLI
35259860PRESTOLITEListe
201039VALEO
458380VALEO
458448VALEO
460469VALEO
PRSL1103EFFE
STRL1103EFFE
AC-CBS1336ACAUTO
AI-80036AINDE
CGB-53155AINDE
10439776ALANKO
ANM16176ANDEL
ANM16176XANDEL
ASM1418APEC
A78060ATL AUTOTECHNIK
AEY1627AUTOELECTRO
NEY1627AUTOELECTRO
SFO107AUTOTEAM
SFO107AAUTOTEAM
BST2334BORG & BECK
STA0286RBOVEZ
CST14107ASCASCO
CST14107GSCASCO
3126CEVAM
1265011CTR
319059102DRI
13.44003DT SPARE PARTS
11998EAI
STR8974ELECTROLOG
25-3155ELSTOCK
EZ0517ELTA AUTOMOTIVE
220374ERA
220374AERA
220374RERA
1638121180EUROREPAR
11090053EUROTEC
2-0076EXACT
106619FARCOM
107129FARCOM
101591FEBI BILSTEIN
8080134FRIESEN
SG0393GHIBAUDI
G201336-NGPARTS
GS001034-AGPARTS
GS001034VI-RGPARTS
SS001034-AGPARTS
SS001034VI-RGPARTS
534376HART
CS1336HC PARTS
3122885HENKEL PARTS
3122887HENKEL PARTS
42001034HERTH+BUSS
H5014065HOFFER
1590301100JP GROUP
STF1336KRAUF
101336KUHNER
101336VKUHNER
331372LOGISTIK
LRS01627LUCAS
LRS1627LUCAS
13663MAPCO
5014065MEAT & DORIA
333003MEC-DIESEL
NPANSM1418NAPA
4722880NK
88212274POWERMAX
IR9670PROTECH
590.548.103.020PSH
590.548.103.028PSH
590.548.103.230PSH
590.548.103.235PSH
590.548.103.395PSH
590.548.103.608PSH
QRS2304QUINTON HAZELL
20450701BNREAL
20450701OEREAL
011-001-000327RREMANTE
2S0052RIDEX
RNL2T14BARNL
STM750ROLLCO
6014107.0SANDO
6014107.1SANDO
S12VS0054SIDAT
S12VS0054A2SIDAT
MAV161070SIOM
MAV161070ASIOM
FO9067SNRA
STX200139STARDAX
STX200139RSTARDAX
STX200345STARDAX
SKSTR-0330051STARK
SX2177STARLINE
998ST11STARTCAR
06-10138-SXSTELLOX
TT16326TESLA
RE83525NTHE NEW LINE
ST01229TMI
20-100-01034VISTEON
32510NWAI / TRANSPO
32510RWAI / TRANSPO
STR61804WOODAUTO
STR61818WOODAUTO
Convient pour :
FORD Tourneo Connect 1.8 Di [P7PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [P7PB] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPC] 06.2002-12.2013
FORD Transit Connect 1.8 Di [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPD] 06.2002-12.2013
FORD Transit Connect 1.8 Di [P7PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P7PA] 06.2002-12.2013
FORD Transit Connect 1.8 Di [P7PB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P7PB] 06.2002-12.2013
FORD Transit Connect 1.8 Di [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PC] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPC] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PD] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPD] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [R2PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [R3PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PC] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PD] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [RWPE] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [R3PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [RWPF] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [P7PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [RWPE] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [P7PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [RWPF] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [BHPA] 06.2002-12.2013
Démarreur Delco DRS0160
Démarreur Delco DRS0160
Démarreur Delco DRS0160
Référence : S9032
Référence 0E : 2T14-11000-BA
EAN : 5901259424096
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.40
Rotation du demarreur CW
Taille A [ mm ] 76.00
Taille B [ mm ] 15.00
Nombre de dents [ qty. ] 10
Nombre de dents (s'insère dans) [ qty. ] 10
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 209.00
O.1 [ mm ] 103.00
O.2 [ mm ] 67.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986022840BOSCH
1986S00222BOSCH
113910CARGO
DRS0160DELCO
DRS0160NDELCO
DRS3956DELCO
DRS3956NDELCO
DS1270DELCO
DS5066DELCO
DS5066NDELCO
RAS34067DELCO
1345314FORD
1477973FORDListe
1477974FORD
1756793FORD
1904988FORD
2T14-11000-AAFORDListe
2T14-11000-BAFORDListe
2T14-11000-BBFORDListe
2T14-11000-BCFORDListe
2T14-11000-CAFORDListe
2T14-11000-CBFORDListe
2T14-11000-CCFORDListe
2T1411000AAFORDListe
2T1411000ABFORD
2T1411000CAFORDListe
2T1411000CBFORDListe
2T1411000CCFORDListe
2T14BAFORD
4033064FORDListe
4424968FORDListe
4443760FORDListe
RE2T1411000BCFORD
8EA011610-261HELLA
8EA738258-201HELLA
063280034010MAGNETI MARELLI
063720022010MAGNETI MARELLI
063721336010MAGNETI MARELLI
359001400010MAGNETI MARELLI
63280034MAGNETI MARELLI
943213361010MAGNETI MARELLI
944280801340MAGNETI MARELLI
MO0001MAMAGNETI MARELLI
MQS1336MAGNETI MARELLI
MRS80134MAGNETI MARELLI
MSN8034MAGNETI MARELLI
35259860PRESTOLITEListe
201039VALEO
458380VALEO
458448VALEO
460469VALEO
PRSL1103EFFE
STRL1103EFFE
AC-CBS1336ACAUTO
AI-80036AINDE
CGB-53155AINDE
10439776ALANKO
ANM16176ANDEL
ANM16176XANDEL
ASM1418APEC
A78060ATL AUTOTECHNIK
AEY1627AUTOELECTRO
NEY1627AUTOELECTRO
SFO107AUTOTEAM
SFO107AAUTOTEAM
BST2334BORG & BECK
STA0286RBOVEZ
CST14107ASCASCO
CST14107GSCASCO
3126CEVAM
1265011CTR
319059102DRI
13.44003DT SPARE PARTS
11998EAI
STR8974ELECTROLOG
25-3155ELSTOCK
EZ0517ELTA AUTOMOTIVE
220374ERA
220374AERA
220374RERA
1638121180EUROREPAR
11090053EUROTEC
2-0076EXACT
106619FARCOM
107129FARCOM
101591FEBI BILSTEIN
8080134FRIESEN
SG0393GHIBAUDI
G201336-NGPARTS
GS001034-AGPARTS
GS001034VI-RGPARTS
SS001034-AGPARTS
SS001034VI-RGPARTS
534376HART
CS1336HC PARTS
3122885HENKEL PARTS
3122887HENKEL PARTS
42001034HERTH+BUSS
H5014065HOFFER
1590301100JP GROUP
STF1336KRAUF
101336KUHNER
101336VKUHNER
331372LOGISTIK
LRS01627LUCAS
LRS1627LUCAS
13663MAPCO
5014065MEAT & DORIA
333003MEC-DIESEL
NPANSM1418NAPA
4722880NK
88212274POWERMAX
IR9670PROTECH
590.548.103.020PSH
590.548.103.028PSH
590.548.103.230PSH
590.548.103.235PSH
590.548.103.395PSH
590.548.103.608PSH
QRS2304QUINTON HAZELL
20450701BNREAL
20450701OEREAL
011-001-000327RREMANTE
2S0052RIDEX
RNL2T14BARNL
STM750ROLLCO
6014107.0SANDO
6014107.1SANDO
S12VS0054SIDAT
S12VS0054A2SIDAT
MAV161070SIOM
MAV161070ASIOM
FO9067SNRA
STX200139STARDAX
STX200139RSTARDAX
STX200345STARDAX
SKSTR-0330051STARK
SX2177STARLINE
998ST11STARTCAR
06-10138-SXSTELLOX
TT16326TESLA
RE83525NTHE NEW LINE
ST01229TMI
20-100-01034VISTEON
32510NWAI / TRANSPO
32510RWAI / TRANSPO
STR61804WOODAUTO
STR61818WOODAUTO
Convient pour :
FORD Tourneo Connect 1.8 Di [P7PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [P7PB] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPC] 06.2002-12.2013
FORD Transit Connect 1.8 Di [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [HCPD] 06.2002-12.2013
FORD Transit Connect 1.8 Di [P7PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P7PA] 06.2002-12.2013
FORD Transit Connect 1.8 Di [P7PB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P7PB] 06.2002-12.2013
FORD Transit Connect 1.8 Di [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPB] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PC] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPC] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [P9PD] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [HCPD] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [R2PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [R3PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PC] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [P9PD] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [RWPE] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [R3PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDCi [RWPF] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [BHPA] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [P7PA] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [RWPE] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [P7PB] 06.2002-12.2013
FORD Transit Connect 1.8 TDCi [RWPF] 06.2002-12.2013
FORD Tourneo Connect 1.8 TDDi [R2PA] 06.2002-12.2013
FORD Tourneo Connect 1.8 Di [BHPA] 06.2002-12.2013
Démarreur Delco DRS0016
Démarreur Delco DRS0016
Démarreur Delco DRS0016
Référence : S9029
Référence 0E : 5M5T11000CC
EAN : 5901259424065
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.20
Rotation du demarreur CW
Taille B [ mm ] 30.00
Nombre de dents [ qty. ] 11
Nombre de dents (s'insère dans) [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 2
Nombre de trous filetes [ qty. ] 0
L.1 [ mm ] 217.00
O.1 [ mm ] 97.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
Références démarreurs compatibles
DRS0016DELCO
DRS0016NDELCO
1325943FORDListe
1366473FORDListe
1478129FORDListe
4063849FORD
4M5T11000AAFORDListe
4M5T11000ABFORDListe
4M5T11000ACFORDListe
5M5T-11000-CCFORDListe
5M5T11000EAFORD
8EA738258-551HELLA
STRS9803EFFE
ANM12236XANDEL
CST14111GSCASCO
3131CEVAM
STR8016ELECTROLOG
220370ERA
8080251FRIESEN
CS1402HC PARTS
42001028HERTH+BUSS
101402KUHNER
22.1402LAUBER
331886LOGISTIK
8212698POWERMAX
88212698POWERMAX
20450111OEREAL
STM1328ROLLCO
6014111SANDO
MAV161110SIOM
STX200384STARDAX
32520NWAI / TRANSPO
STR61811WOODAUTO
Convient pour :
FORD Focus 1.8 C-Max [CSDA] 05.2004-03.2007 Transmission Type: B5, IB5
FORD Focus 1.8 C-Max [CSDB] 05.2004-03.2007 Transmission Type: B5, IB5
FORD Focus 1.8 C-Max [Q7DA] 04.2004- Transmission Type: B5, IB5
FORD Focus 1.8 C-Max [QQDA] 04.2004-03.2007 Transmission Type: B5, IB5
FORD Focus 1.8 C-Max [QQDB] 04.2004- Transmission Type: B5, IB5
FORD Focus 1.8 C-Max Flexifuel [Q7DA] 01.2006-03.2007
FORD Focus 1.8 Flexifuel [Q7DA] 01.2006-
FORD C-Max 1.8 02.2007-
FORD C-Max 1.8 Flexifuel 02.2007
Démarreur Delco PG260NA
Démarreur Delco PG260NA
Démarreur Delco PG260NA
Référence : S9017
Référence 0E : PG260NA
EAN : 5901259423921
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.80
Rotation du demarreur CW
Taille A [ mm ] 89.00
Taille B [ mm ] 22.00
Nombre de dents [ qty. ] 9
Nombre de dents (s'insère dans) [ qty. ] 9
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 0
L.1 [ mm ] 237.00
O.1 [ mm ] 90.00
O.2 [ mm ] 127.00
O.3 [ mm ] 90.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50
Références démarreurs compatibles
0001109027BOSCHListe
0001109046BOSCHListe
115515CARGO
262039DAEWOO
262045DAEWOO
8000017DELCOListe
8000425DELCOListe
PG260NADELCOListe
931.000.0ELMOT
STRS7243EFFE
CST10428CASCO
CST10428ASCASCO
CST10428ESCASCO
CST10428GSCASCO
CST10428OSCASCO
CST10428RSCASCO
STB4946KRAUF
254825BKUHNER
254825DKUHNER
920.501.093PSH
920.501.093.211PSH
20401824REAL
6010428SANDO
UNIT BOM 920-266WAI / TRANSPO
BOS0001109046WOODAUTO
STR80193WOODAUTO
Convient pour :
ANDORIA Engine [4CT90] 01.2007-
ANDORIA Engine [4CTI90-1] 01.2007
DAEWOO Lublin 01.1999-
GAZ Gazelle 2.4 D 01.2007
UAZ Hunter 2.4 D 01.2007
Démarreur Delco DRS3975N
Démarreur Delco DRS3975N
Démarreur Delco DRS3975N
Référence : S9015
Référence 0E : 93BB11000KD
EAN : 5901259423891
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.40
Rotation du demarreur ACW
Taille B [ mm ] 23.00
Nombre de dents [ qty. ] 22
Nombre de dents (s'insère dans) [ qty. ] 22
Nombre d'ouvertures dans la tete [ qty. ] 2
Nombre de trous filetes [ qty. ] 0
L.1 [ mm ] 220.00
O.1 [ mm ] 105.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
Références démarreurs compatibles
0986022561BOSCH
111374CARGO
DRS3568DELCO
DRS3975DELCO
DRS3975NDELCO
1057661FORDListe
1076141FORDListe
1085273FORDListe
1151642FORDListe
1205240FORDListe
1367529FORDListe
1388569FORDListe
1416224FORD
1X4U11000AAFORDListe
1X4UAAFORD
2S7T11000AAFORDListe
2S7T11000ABFORDListe
2S7T11000ACFORDListe
2S7T11000ADFORDListe
4X4U11000AAFORD
4X4U11000ABFORD
4X4U11000ACFORDListe
5L8T-11000-ACFORDListe
6L8T11000AAFORDListe
7041784FORD
8A031840SBFORD
93BB11000KAFORDListe
93BB11000KBFORDListe
93BB11000KCFORDListe
93BB11000KDFORDListe
93BBKDFORD
98BB11000AAFORD
BE5T11000AAFORDListe
BE5Z11002FFORD
F3RZ11002CFORDListe
R93BB11000KCFORD
R93BB11000KDFORD
R93BB11000KD1FORD
SA815FORDListe
SA898FORD
Y8SZ11002AAFORD
YS8Z11002AAFORD
8EA012526-421HELLA
8EA737107-001HELLA
C2S1396JAGUAR
C2S41471JAGUAR
C2S43297JAGUAR
C2S47479JAGUAR
C2S47479EJAGUAR
AJ03-18-400MAZDA
AJ0318400MAZDA
AJ34-18-400MAZDA
AJ3418400AMAZDA
M001T96581MITSUBISHIListe
M1T96581MITSUBISHIListe
20510117PRESTOLITE
455892VALEO
STRW2243EFFE
ANM16195XANDEL
AES1217AUTOELECTRO
STA0475RBOVEZ
CST14117GSCASCO
3019CEVAM
11836EAI
STR8968ELECTROLOG
25-2305ELSTOCK
220373ERA
220408ERA
8080057FRIESEN
CS961HC PARTS
42001005HERTH+BUSS
10961KUHNER
254116KUHNER
254116VKUHNER
22.0961LAUBER
331113LOGISTIK
LRT00117LUCAS
5014896MEAT & DORIA
8213097POWERMAX
88213097POWERMAX
20450711OEREAL
6014117SANDO
MAV161170SIOM
SS948SOVEREIGN
STX200224STARDAX
3264NWAI / TRANSPO
6656NWAI / TRANSPO
6703NWAI / TRANSPO
STR61802WOODAUTO
Convient pour :
FORD Mondeo 2.5 [SGA] 09.1999-09.2000
FORD Mondeo 2.5 24V [SEA] 08.1996-09.2000
FORD Mondeo 2.5 24V [SEB] 06.2000-11.2000
FORD Mondeo 2.5 24V [SEC] 06.2000-11.2000
FORD Mondeo 2.5 i 24V [SEA] 07.1994-08.1996
FORD Mondeo 2.5 V6 24V [LCBD] 11.2000-
FORD Mondeo 3.0 [MEBA] 04.2002-
FORD Mondeo 3.0 [MEBA] 04.2002- AT
FORD Cougar 2.5 i ST 200 [SGA] 01.2000-
FORD Cougar 2.5 V6 24V [LCBA] 08.1998-
FORD Cougar 2.5 V6 24V [LCBB] 08.1998-12.2000
FORD Cougar 2.5 V6 24V [LCBC] 08.1998-12.2000
FORD Cougar 2.5 V6 24V [LCBE] 08.1998-12.2000
FORD Maverick 3.0 24V [AJ] 07.2001-12.2003
FORD Maverick 3.0 V6 24V [AJ] 02.2001
MAZDA Tribute 3.0 V6 24V 4WD 03.2000
Démarreur Delco DRS3975
Démarreur Delco DRS3975
Démarreur Delco DRS3975
Référence : S9015
Référence 0E : 93BB11000KD
EAN : 5901259423891
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.40
Rotation du demarreur ACW
Taille B [ mm ] 23.00
Nombre de dents [ qty. ] 22
Nombre de dents (s'insère dans) [ qty. ] 22
Nombre d'ouvertures dans la tete [ qty. ] 2
Nombre de trous filetes [ qty. ] 0
L.1 [ mm ] 220.00
O.1 [ mm ] 105.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
Références démarreurs compatibles
0986022561BOSCH
111374CARGO
DRS3568DELCO
DRS3975DELCO
DRS3975NDELCO
1057661FORDListe
1076141FORDListe
1085273FORDListe
1151642FORDListe
1205240FORDListe
1367529FORDListe
1388569FORDListe
1416224FORD
1X4U11000AAFORDListe
1X4UAAFORD
2S7T11000AAFORDListe
2S7T11000ABFORDListe
2S7T11000ACFORDListe
2S7T11000ADFORDListe
4X4U11000AAFORD
4X4U11000ABFORD
4X4U11000ACFORDListe
5L8T-11000-ACFORDListe
6L8T11000AAFORDListe
7041784FORD
8A031840SBFORD
93BB11000KAFORDListe
93BB11000KBFORDListe
93BB11000KCFORDListe
93BB11000KDFORDListe
93BBKDFORD
98BB11000AAFORD
BE5T11000AAFORDListe
BE5Z11002FFORD
F3RZ11002CFORDListe
R93BB11000KCFORD
R93BB11000KDFORD
R93BB11000KD1FORD
SA815FORDListe
SA898FORD
Y8SZ11002AAFORD
YS8Z11002AAFORD
8EA012526-421HELLA
8EA737107-001HELLA
C2S1396JAGUAR
C2S41471JAGUAR
C2S43297JAGUAR
C2S47479JAGUAR
C2S47479EJAGUAR
AJ03-18-400MAZDA
AJ0318400MAZDA
AJ34-18-400MAZDA
AJ3418400AMAZDA
M001T96581MITSUBISHIListe
M1T96581MITSUBISHIListe
20510117PRESTOLITE
455892VALEO
STRW2243EFFE
ANM16195XANDEL
AES1217AUTOELECTRO
STA0475RBOVEZ
CST14117GSCASCO
3019CEVAM
11836EAI
STR8968ELECTROLOG
25-2305ELSTOCK
220373ERA
220408ERA
8080057FRIESEN
CS961HC PARTS
42001005HERTH+BUSS
10961KUHNER
254116KUHNER
254116VKUHNER
22.0961LAUBER
331113LOGISTIK
LRT00117LUCAS
5014896MEAT & DORIA
8213097POWERMAX
88213097POWERMAX
20450711OEREAL
6014117SANDO
MAV161170SIOM
SS948SOVEREIGN
STX200224STARDAX
3264NWAI / TRANSPO
6656NWAI / TRANSPO
6703NWAI / TRANSPO
STR61802WOODAUTO
Convient pour :
FORD Mondeo 2.5 [SGA] 09.1999-09.2000
FORD Mondeo 2.5 24V [SEA] 08.1996-09.2000
FORD Mondeo 2.5 24V [SEB] 06.2000-11.2000
FORD Mondeo 2.5 24V [SEC] 06.2000-11.2000
FORD Mondeo 2.5 i 24V [SEA] 07.1994-08.1996
FORD Mondeo 2.5 V6 24V [LCBD] 11.2000-
FORD Mondeo 3.0 [MEBA] 04.2002-
FORD Mondeo 3.0 [MEBA] 04.2002- AT
FORD Cougar 2.5 i ST 200 [SGA] 01.2000-
FORD Cougar 2.5 V6 24V [LCBA] 08.1998-
FORD Cougar 2.5 V6 24V [LCBB] 08.1998-12.2000
FORD Cougar 2.5 V6 24V [LCBC] 08.1998-12.2000
FORD Cougar 2.5 V6 24V [LCBE] 08.1998-12.2000
FORD Maverick 3.0 24V [AJ] 07.2001-12.2003
FORD Maverick 3.0 V6 24V [AJ] 02.2001
MAZDA Tribute 3.0 V6 24V 4WD 03.2000
Démarreur Delco DRS3568
Démarreur Delco DRS3568
Démarreur Delco DRS3568
Référence : S9015
Référence 0E : 93BB11000KD
EAN : 5901259423891
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.40
Rotation du demarreur ACW
Taille B [ mm ] 23.00
Nombre de dents [ qty. ] 22
Nombre de dents (s'insère dans) [ qty. ] 22
Nombre d'ouvertures dans la tete [ qty. ] 2
Nombre de trous filetes [ qty. ] 0
L.1 [ mm ] 220.00
O.1 [ mm ] 105.00
C.1 [ mm ] 11.50
C.2 [ mm ] 11.50
Références démarreurs compatibles
0986022561BOSCH
111374CARGO
DRS3568DELCO
DRS3975DELCO
DRS3975NDELCO
1057661FORDListe
1076141FORDListe
1085273FORDListe
1151642FORDListe
1205240FORDListe
1367529FORDListe
1388569FORDListe
1416224FORD
1X4U11000AAFORDListe
1X4UAAFORD
2S7T11000AAFORDListe
2S7T11000ABFORDListe
2S7T11000ACFORDListe
2S7T11000ADFORDListe
4X4U11000AAFORD
4X4U11000ABFORD
4X4U11000ACFORDListe
5L8T-11000-ACFORDListe
6L8T11000AAFORDListe
7041784FORD
8A031840SBFORD
93BB11000KAFORDListe
93BB11000KBFORDListe
93BB11000KCFORDListe
93BB11000KDFORDListe
93BBKDFORD
98BB11000AAFORD
BE5T11000AAFORDListe
BE5Z11002FFORD
F3RZ11002CFORDListe
R93BB11000KCFORD
R93BB11000KDFORD
R93BB11000KD1FORD
SA815FORDListe
SA898FORD
Y8SZ11002AAFORD
YS8Z11002AAFORD
8EA012526-421HELLA
8EA737107-001HELLA
C2S1396JAGUAR
C2S41471JAGUAR
C2S43297JAGUAR
C2S47479JAGUAR
C2S47479EJAGUAR
AJ03-18-400MAZDA
AJ0318400MAZDA
AJ34-18-400MAZDA
AJ3418400AMAZDA
M001T96581MITSUBISHIListe
M1T96581MITSUBISHIListe
20510117PRESTOLITE
455892VALEO
STRW2243EFFE
ANM16195XANDEL
AES1217AUTOELECTRO
STA0475RBOVEZ
CST14117GSCASCO
3019CEVAM
11836EAI
STR8968ELECTROLOG
25-2305ELSTOCK
220373ERA
220408ERA
8080057FRIESEN
CS961HC PARTS
42001005HERTH+BUSS
10961KUHNER
254116KUHNER
254116VKUHNER
22.0961LAUBER
331113LOGISTIK
LRT00117LUCAS
5014896MEAT & DORIA
8213097POWERMAX
88213097POWERMAX
20450711OEREAL
6014117SANDO
MAV161170SIOM
SS948SOVEREIGN
STX200224STARDAX
3264NWAI / TRANSPO
6656NWAI / TRANSPO
6703NWAI / TRANSPO
STR61802WOODAUTO
Convient pour :
FORD Mondeo 2.5 [SGA] 09.1999-09.2000
FORD Mondeo 2.5 24V [SEA] 08.1996-09.2000
FORD Mondeo 2.5 24V [SEB] 06.2000-11.2000
FORD Mondeo 2.5 24V [SEC] 06.2000-11.2000
FORD Mondeo 2.5 i 24V [SEA] 07.1994-08.1996
FORD Mondeo 2.5 V6 24V [LCBD] 11.2000-
FORD Mondeo 3.0 [MEBA] 04.2002-
FORD Mondeo 3.0 [MEBA] 04.2002- AT
FORD Cougar 2.5 i ST 200 [SGA] 01.2000-
FORD Cougar 2.5 V6 24V [LCBA] 08.1998-
FORD Cougar 2.5 V6 24V [LCBB] 08.1998-12.2000
FORD Cougar 2.5 V6 24V [LCBC] 08.1998-12.2000
FORD Cougar 2.5 V6 24V [LCBE] 08.1998-12.2000
FORD Maverick 3.0 24V [AJ] 07.2001-12.2003
FORD Maverick 3.0 V6 24V [AJ] 02.2001
MAZDA Tribute 3.0 V6 24V 4WD 03.2000
Démarreur Delco DS4569
Démarreur Delco DS4569
Démarreur Delco DS4569
Référence : S4064S
Référence 0E : LRS136
EAN : 5902129042884
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.10
Rotation du demarreur CW
Taille A [ mm ] 89.00
Taille B [ mm ] 77.00
Nombre de dents [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 2
Nombre de trous filetes [ qty. ] 0
L.1 [ mm ] 316.00
O.1 [ mm ] 127.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
Références démarreurs compatibles
9004475070BOSCH
DRS3459DELCO
DS4569DELCO
GEU411ROVER
GEU419ROVER
GEU4419ROVER
GXE4419ROVER
RTC3854ROVER
RTC5225ROVER
RTC5225NROVER
455802VALEO
PRSS3973EFFE
STRS3973EFFE
CGB-50414AINDE
AES1136AUTOELECTRO
11816EAI
STR4140ELECTROLOG
25-0414ELSTOCK
SG0583GHIBAUDI
255161KUHNER
25524LUCAS
25605LUCAS
25605BLUCAS
25605DLUCAS
25668LUCASListe
25668BLUCAS
LRS00136LUCAS
LRS136LUCAS
88214062POWERMAX
450.016.112.100PSH
SS193SOVEREIGN
16107RWAI / TRANSPO
91-17-8836WILSON
STR56014WOODAUTO
Convient pour :
JAGUAR Mk I 3.4 09.1955-09.1959
JAGUAR Mk IX 3.8 01.1959-07.1961
JAGUAR Mk X 3.4 10.1961-10.1964
JAGUAR S-Type 3.8 05.1963-08.1968
JAGUAR XJ6 2.8 09.1968-09.1973
JAGUAR E-Type 3.8 04.1961-07.1964
JAGUAR E-Type 3.8 Convertible 04.1961-07.1964
LAND ROVER Series IIA 2.3 4x4 [10H] 09.1963-12.1986
LAND ROVER Series IIA 2.3 4x4 [11H] 09.1963-12.1986
Démarreur Delco DRS3459
Démarreur Delco DRS3459
Démarreur Delco DRS3459
Référence : S4064S
Référence 0E : LRS136
EAN : 5902129042884
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.10
Rotation du demarreur CW
Taille A [ mm ] 89.00
Taille B [ mm ] 77.00
Nombre de dents [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 2
Nombre de trous filetes [ qty. ] 0
L.1 [ mm ] 316.00
O.1 [ mm ] 127.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
Références démarreurs compatibles
9004475070BOSCH
DRS3459DELCO
DS4569DELCO
GEU411ROVER
GEU419ROVER
GEU4419ROVER
GXE4419ROVER
RTC3854ROVER
RTC5225ROVER
RTC5225NROVER
455802VALEO
PRSS3973EFFE
STRS3973EFFE
CGB-50414AINDE
AES1136AUTOELECTRO
11816EAI
STR4140ELECTROLOG
25-0414ELSTOCK
SG0583GHIBAUDI
255161KUHNER
25524LUCAS
25605LUCAS
25605BLUCAS
25605DLUCAS
25668LUCASListe
25668BLUCAS
LRS00136LUCAS
LRS136LUCAS
88214062POWERMAX
450.016.112.100PSH
SS193SOVEREIGN
16107RWAI / TRANSPO
91-17-8836WILSON
STR56014WOODAUTO
Convient pour :
JAGUAR Mk I 3.4 09.1955-09.1959
JAGUAR Mk IX 3.8 01.1959-07.1961
JAGUAR Mk X 3.4 10.1961-10.1964
JAGUAR S-Type 3.8 05.1963-08.1968
JAGUAR XJ6 2.8 09.1968-09.1973
JAGUAR E-Type 3.8 04.1961-07.1964
JAGUAR E-Type 3.8 Convertible 04.1961-07.1964
LAND ROVER Series IIA 2.3 4x4 [10H] 09.1963-12.1986
LAND ROVER Series IIA 2.3 4x4 [11H] 09.1963-12.1986
Démarreur Delco DRS3796
Démarreur Delco DRS3796
Démarreur Delco DRS3796
Référence : S4058
Référence 0E : LRS170
EAN : 5902129028536
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.10
Rotation du demarreur CW
Taille A [ mm ] 88.70
Taille B [ mm ] 29.50
Nombre de dents [ qty. ] 10
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 0
L.1 [ mm ] 317.00
O.1 [ mm ] 89.00
O.2 [ mm ] 89.00
O.3 [ mm ] 127.00
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50
Références démarreurs compatibles
0986023820BOSCH
110442CARGO
DRS3796DELCO
8EA737091-001HELLA
2707130MAGNETI MARELLI
54293277MAGNETI MARELLI
63227415MAGNETI MARELLIListe
63227479MAGNETI MARELLI
63227487MAGNETI MARELLI
MSN178MAGNETI MARELLI
9142804MAGNETON
1680064R1MASSEY FERGUSON
1680065M1MASSEY FERGUSON
1691806R1MASSEY FERGUSON
1895337R91MASSEY FERGUSON
3930509R1MASSEY FERGUSON
888346M1MASSEY FERGUSON
888346M2MASSEY FERGUSON
1873A013PERKINS
1873A015PERKINS
2872D002PERKINS
2873119PERKINS
2873123PERKINS
2873124PERKINS
2873145PERKINS
2873145TPERKINS
2873180PERKINS
2873181PERKINS
2873185PERKINS
2873186PERKINS
2873A015PERKINS
2873A016PERKINS
2873A103PERKINSListe
2873A105PERKINS
2873A107PERKINS
2873A15PERKINS
2873D001PERKINS
31196PERKINS
31197PERKINS
34237PERKINS
7323002PERKINS
7523002PERKINS
7523821PERKINS
66925051PRESTOLITE
859883PRESTOLITE
STRS0893EFFE
CGB-23285AINDE
CGB-23287AINDE
AES9169AUTOELECTRO
CST25123CASCO
CST25123ASCASCO
CST25123ESCASCO
CST25123GSCASCO
CST25123OSCASCO
CST25123RSCASCO
33413EAI
STR4184ELECTROLOG
25-0387ELSTOCK
SG0145GHIBAUDI
CS946HC PARTS
10946KUHNER
10946LKUHNER
26025128ALUCAS
26151LUCASListe
26151ALUCASListe
26151FLUCASListe
26151HLUCASListe
26151NLUCASListe
26198LUCASListe
26198ALUCASListe
26281LUCASListe
26281ALUCASListe
26281BLUCAS
26281CLUCAS
26281DLUCAS
26281ELUCASListe
26281FLUCASListe
26281GLUCAS
26281HLUCAS
26281JLUCASListe
26281RLUCAS
27407LUCASListe
27411LUCASListe
27412LUCASListe
27415LUCASListe
27415ALUCASListe
27415BLUCASListe
27415DLUCASListe
27464LUCASListe
27473LUCASListe
27477LUCAS
27479LUCASListe
27479ALUCAS
27479BLUCAS
27485LUCAS
27487LUCASListe
54243208LUCAS
LRS00170LUCAS
LRS170LUCASListe
NSB500LUCAS
NSB501LUCAS
650.006.103PSH
20405321OEREAL
6025123SANDO
S12LU0717A2SIDAT
MAV271230SIOM
MAV3820SIOM
STX200641STARDAX
STX200678STARDAX
STX210091STARDAX
18919NWAI / TRANSPO
STR25019WOODAUTO
Convient pour :
COMPAIR 152GT 3.9 01.1976-
COMPAIR 180GT 3.9 01.1976
MASSEY FERGUSON 3050 [A4.236] 01.1986-12.1994
MASSEY FERGUSON 365 [A4.236] 01.1986-01.1990
MASSEY FERGUSON 375 [A4.236] 01.1986-01.1997
MASSEY FERGUSON 383 01.1983-
MASSEY FERGUSON 390 [A4.248] 01.1986-01.1997
MASSEY FERGUSON 390 T 01.1991-01.1997
MASSEY FERGUSON 398 [AT4.236] 01.1983-01.1984
MASSEY FERGUSON 399 [A6.354] 01.1986-01.1990
MASSEY FERGUSON 698 [AA318.2] 01.1983-
MASSEY FERGUSON 699 [A6.354.4] 01.1983-
MASSEY FERGUSON 285 01.1975-12.1988
MASSEY FERGUSON 298 [A4.318] 01.1980
Démarreur Delco DRS3464
Démarreur Delco DRS3464
Démarreur Delco DRS3464
Référence : S4059
Référence 0E : LRS139
EAN : 5902129028581
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.10
Rotation du demarreur CW
Taille A [ mm ] 92.00
Taille B [ mm ] 19.00
Nombre de dents [ qty. ] 10
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 0
L.1 [ mm ] 316.00
O.1 [ mm ] 146.00
O.2 [ mm ] 103.00
O.3 [ mm ] 103.00
C.1 [ mm ] 12.50
C.2 [ mm ] 12.50
C.3 [ mm ] 12.50
Références démarreurs compatibles
110440CARGO
DRS3464DELCO
8EA737246-001HELLA
63227468MAGNETI MARELLI
MSR183MAGNETI MARELLI
20500139PRESTOLITE
GEU420ROVER
PRSF0393EFFE
STRF0393EFFE
CGB-23511AINDE
ANM15684XANDEL
AES1139AUTOELECTRO
CST25113ASCASCO
CST25113GSCASCO
11608EAI
STR4109ELECTROLOG
25-0250ELSTOCK
SG0162GHIBAUDI
CS997HC PARTS
331149LOGISTIK
26025198ALUCAS
26259LUCASListe
26259ALUCASListe
26259KLUCASListe
26259LLUCASListe
26259NLUCASListe
26321BLUCASListe
26321DLUCASListe
26321FLUCASListe
26925198LUCAS
26925198ALUCAS
26925198DLUCAS
27446LUCASListe
27446ALUCASListe
27468LUCASListe
27468ALUCASListe
27468BLUCASListe
LRS00139LUCASListe
LRS139LUCASListe
NSB409LUCAS
NSB511LUCAS
8213323POWERMAX
450.009.103.100PSH
450.009.103.108PSH
20405311BNREAL
20405311OEREAL
180-30174ROBERT'S
STM763ROLLCO
6025113.0SANDO
6025113.1SANDO
MAV3640SIOM
33088NWAI / TRANSPO
33088RWAI / TRANSPO
STR56003WOODAUTO
Convient pour :
LAND ROVER LR 109 DP 2.3 D [10J]
LAND ROVER LR 109 DP 2.3 D [23J]
LAND ROVER 109 2.25 D
LAND ROVER 110 2.25 D 01.1983-01.1984
LAND ROVER 110 2.3 D 4x4 [10J] 01.1984-12.2006
LAND ROVER 110 2.5 D 4x4 [12J] 01.1984-12.2006
LAND ROVER 90 2.3 D 4x4 [10J] 01.1983-12.2009
LAND ROVER 90 2.5 D 4x4 [12J] 01.1983-12.2009
Démarreur Delco DRS3455
Démarreur Delco DRS3455
Démarreur Delco DRS3455
Référence : S4056
Référence 0E : LRS100
EAN : 5902129023265
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 0,80
Rotation du démarreur CW
Taille A [ mm ] 89,00
Taille B [ mm ] 45,00
Nombre de dents [ qté. ] 10
Nombre d'ouvertures dans la tête [ qty. ] 3
Nombre de trous filetes [ qté. ] 0
L.1 [ mm ] 310,00
O.1 [ mm ] 114,00
O.2 [ mm ] 80,00
O.3 [ mm ] 80,00
C.1 [ mm ] 10,50
C.2 [ mm ] 10,50
C.3 [ mm ] 10,50
Références démarreurs compatibles
DRS3455DELCO
9141381MAGNETONListe
20500100PRESTOLITE
ANM15675XANDEL
AES1100AUTOÉLECTRO
STR4005ELECTROLOG
25-0050ELSTOCK
25142LUCAS
25148LUCAS
25236LUCAS
25260LUCAS
LRS00100LUCAS
LRS0100LUCAS
LRS100LUCAS
SS138SOVEREIGN
16169RWAI / TRANSPO
STR56013WOODAUTO
Convient pour :
BEDFORD Chevanne 1.3 [LW4] 03.1980-12.1982
FORD Cortina 1.3 01.1976-12.1979
FORD Cortina 1.6 01.1976-12.1979
