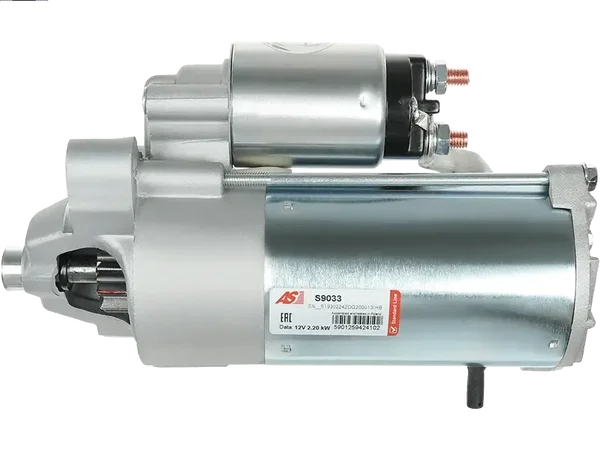

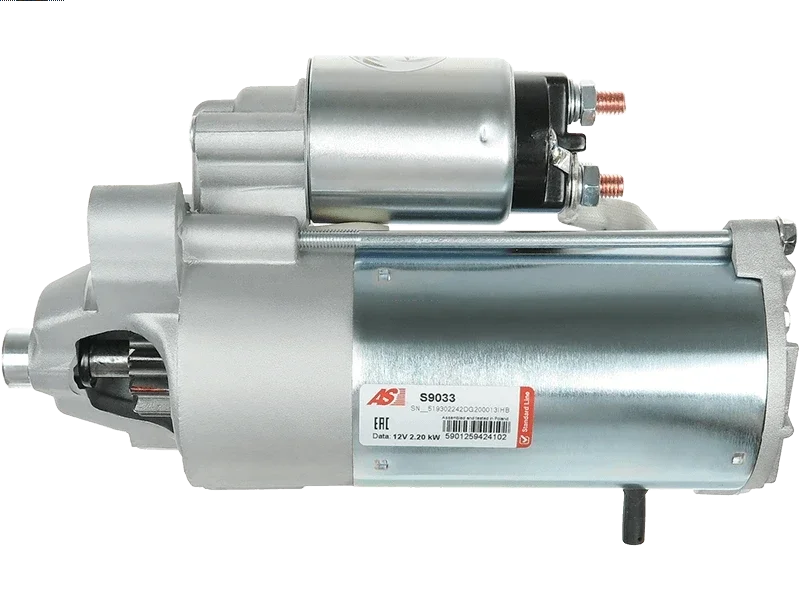

Démarreur Delco DS1271N
Démarreur Delco DS1271N
Référence : S9033
Référence 0E : 3M5T11000DC
EAN : 5901259424102
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.20
Rotation du demarreur CW
Taille A [ mm ] 63.00
Taille B [ mm ] -6.00
Nombre de dents [ qty. ] 11
Nombre de dents (s'insère dans) [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 244.00
O.1 [ mm ] 103.00
O.2 [ mm ] 66.00
O.3 [ mm ] 66.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Références démarreurs compatibles
0986023380BOSCH
113911CARGO
116157CARGO
DRS0156NDELCO
DRS0161DELCO
DRS0161NDELCO
DRS3969DELCO
DRS3969NDELCO
DS1271NDELCO
DS5079DELCO
DS5079NDELCO
RAS34070DELCO
1231963FORDListe
1233235FORD
1351989FORDListe
1376305FORDListe
1385784FORDListe
1465115FORDListe
1469721FORDListe
1756795FORD
3M5T-11000-DAFORDListe
3M5T-11000-DBFORDListe
3M5T-11000-DCFORDListe
3M5TDCFORD
3M5U-11131-AAFORD
4M5T-11000-FAFORDListe
4M5T-11000-FBFORDListe
4M5T-11000-FCFORDListe
4M5T-11000-FDFORDListe
6G9N-11000-FAFORDListe
6GN9-11000-FAFORD
RE6G9N-11000-FAFORD
RE6G9N11000FAFORD
RM6G9N-11000-FAFORD
RM6G9N11000FAFORD
VP3M5U-11131-AAFORD
8EA011611-001HELLA
8EA012140-391HELLA
8EA738258-281HELLA
6.0142.9IKA
063280036010MAGNETI MARELLI
063721377010MAGNETI MARELLI
63280036MAGNETI MARELLI
943213771010MAGNETI MARELLI
944280802380MAGNETI MARELLI
MQS1377MAGNETI MARELLI
MRS80238MAGNETI MARELLI
MSN8036MAGNETI MARELLI
MSRC1377MAGNETI MARELLI
201019VALEO
438400VALEO
438485VALEO
458637VALEO
30664494VOLVO
30667058VOLVO
30667058-AVOLVO
30667494VOLVO
30667874VOLVO
30795404VOLVO
30795407VOLVO
36000221VOLVO
8603409VOLVO
8697576VOLVO
8697576-AVOLVO
PRSS2233EFFE
STRS2233EFFE
AI-80037AINDE
AI-80037RAINDE
ANM16189XANDEL
ASM1257APEC
AEU1377AUTOELECTRO
AEY2171AUTOELECTRO
NEU1377AUTOELECTRO
STA0426RBOVEZ
CST14112ASCASCO
CST14112GSCASCO
3124CEVAM
12007EAI
STR8015ELECTROLOG
25-3345ELSTOCK
25-3434ELSTOCK
EZ0359ELTA AUTOMOTIVE
220375ERA
SG0389GHIBAUDI
GS001036-AGPARTS
GS001036VI-RGPARTS
SS001036-AGPARTS
SS001036VI-RGPARTS
CS1377HC PARTS
STF1377KRAUF
101377KUHNER
101377MKUHNER
101377VKUHNER
331888LOGISTIK
LRS02171LUCAS
LRS02263LUCAS
LRS2171LUCAS
LRS2263LUCAS
5014058MEAT & DORIA
NPANSM1257NAPA
88212622POWERMAX
590.547.113.020PSH
590.547.113.028PSH
590.547.113.029PSH
590.547.113.230PSH
590.547.113.235PSH
590.547.113.239PSH
20450211BNREAL
20450211OEREAL
311515RHIAG
2S0034RIDEX
STM513ROLLCO
6014112.0SANDO
6014112.1SANDO
S12VS0036SIDAT
S12VS0036A2SIDAT
MAV161120SIOM
STX200024STARDAX
STX200024RSTARDAX
F042S0H071UNIPOINT
20-100-01036VISTEON
20-100-01052VISTEON
32505NWAI / TRANSPO
STR61815WOODAUTO
Convient pour :
FORD Focus C-Max 2.0 TDCi [G6DA] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DB] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DD] 01.2003-12.2007
FORD Focus C-Max 2.0 TDCi [G6DG] 01.2003-12.2007
FORD C-Max 2.0 TDCi [G6DA] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DB] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DD] 01.2007-12.2010
FORD C-Max 2.0 TDCi [G6DG] 01.2007-12.2010
FORD Focus 2.0 TDCi [G6DA] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DA] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DB] 01.2004-12.2012
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2015
FORD Focus 2.0 TDCi [G6DB] 01.2006-12.2010
FORD Mondeo 2.0 TDCi [AZBA] 01.2007-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DD] 01.2006-12.2010
FORD Focus 2.0 TDCi [G6DG] 01.2004-12.2012
FORD Focus 2.0 TDCi [G6DG] 01.2006-12.2010
FORD Focus 2.0 TDCi [IXDA] 01.2008-12.2011
FORD Mondeo 2.0 TDCi [KLBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [LPBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [AZWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWA] 01.2006-12.2014
FORD S-Max 2.0 TDCi [QXWB] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBA] 01.2007-12.2015
FORD S-Max 2.0 TDCi [QXWC] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [QXBB] 01.2007-12.2015
FORD S-Max 2.0 TDCi [UFWA] 01.2006-12.2014
FORD Mondeo 2.0 TDCi [TYBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBA] 01.2007-12.2015
FORD Mondeo 2.0 TDCi [UFBB] 01.2007-12.2015
FORD Galaxy 2.0 TDCi [AZWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWA] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWB] 01.2006-12.2015
FORD Galaxy 2.0 TDCi [QXWC] 01.2006-12.2015
FORD Kuga 2.0 TDCi [G6DG] 01.2008-12.2012
FORD Kuga 2.0 TDCi [UKDA] 01.2008-12.2012
FORD Kuga 2.0 TDCi 4x4 [G6DG] 01.2008-12.2012
FORD Galaxy 2.0 TDCi [UFWA] 01.2006-12.2015
FORD Kuga 2.0 TDCi 4x4 [UKDA] 01.2008-12.2012
VOLVO V50 2.0 CDi [D4204T2] 12.2003-12.2006
VOLVO V50 2.0 D [D4204T] 04.2004-12.2010
VOLVO S40 2.0 D [D4204T] 01.2004-12.2010
VOLVO C30 2.0 D [D4204T] 10.2006-12.2012
VOLVO S80 2.0 TDi [D4204T] 02.2008-03.2011
VOLVO V70 2.0 D [D4204T] 10.2007-12.2015
VOLVO C70 2.0 D [D4204T] 01.2008-10.2009
