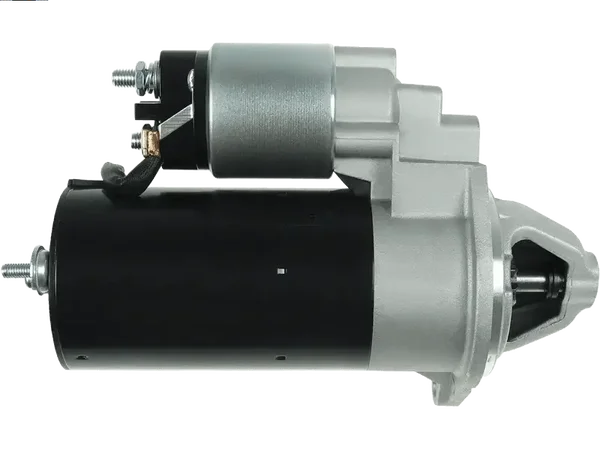

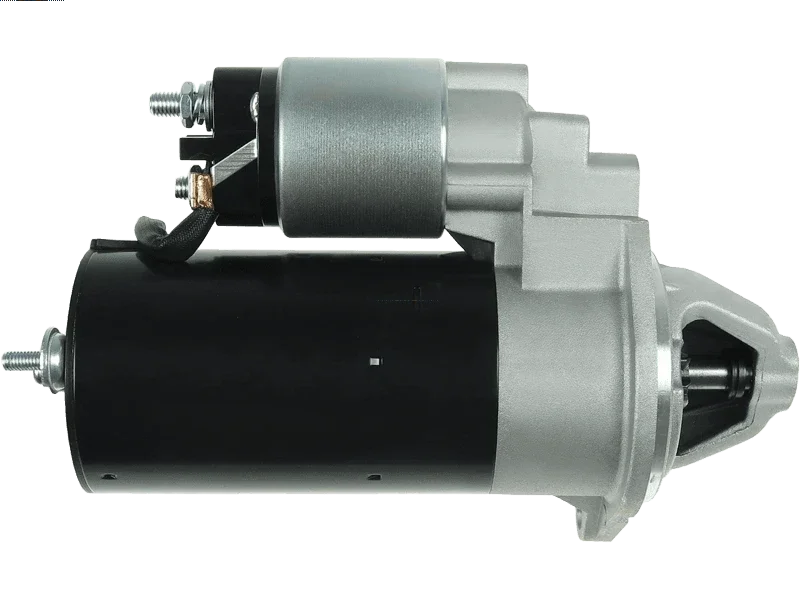

Démarreur Bosch 0001109015
Démarreur Bosch 0001109015
Référence : S0036
Référence OE : 0001109015
EAN : 5901259418835
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.00
Rotation du demarreur CW
Taille A [ mm ] 82.50
Taille B [ mm ] 19.00
Nombre de dents [ qty. ] 10
Nombre de dents (s'insère dans) [ qty. ] 10
Nombre d'ouvertures dans la tete [ qty. ] 2
Nombre de trous filetes [ qty. ] 1
L.1 [ mm ] 246.00
O.1 [ mm ] 115.00
C.1 [ mm ] M12x1.75
C.2 [ mm ] 10.50
Références démarreurs compatibles :
0001109015BOSCHListe
0001109050BOSCHListe
0001109052BOSCHListe
0001109055BOSCHListe
0001109062BOSCHListe
0001109068BOSCHListe
0001218068BOSCHListe
0986017420BOSCH
0986017423BOSCH
1986S00724BOSCH
113674CARGO
1516830RDAF
DRS7420DELCO
DRS7420NDELCO
DRS7420XDELCO
DS8530DELCO
DS8530NDELCO
RAS38531DELCO
260540-5110DENSO
DSN3017DENSO
8EA011610-571HELLA
8EA737149-001HELLA
11.131.297ISKRA / LETRIKA
AZE2165ISKRA / LETRIKAListe
IS1121ISKRA / LETRIKA
063521090680MAGNETI MARELLI
943253106010MAGNETI MARELLI
944280174200MAGNETI MARELLI
MRS17420MAGNETI MARELLI
MSR5306MAGNETI MARELLI
72735725MAHLE
MS97MAHLE
1202148OPEL
24422273OPEL
24454431OPEL
5342340OPEL
5343371OPEL
55351630OPEL
6202009OPEL
6202014OPEL
6202039OPEL
6202060OPEL
90511467OPEL
90512467OPEL
90512647OPEL
90519331OPEL
9200962OPEL
93171526OPEL
93174017OPEL
93174029OPEL
93176034OPEL
93184916OPEL
93184917OPEL
93184922OPEL
93184923OPEL
9512655OPEL
9544537OPEL
95524891OPEL
R1540005OPEL
20510139PRESTOLITE
S1063BPRESTOLITE
9544340SAAB
438407VALEO
438465VALEO
458169VALEO
726046VALEO
726846VALEO
PRSL0713EFFE
STRL0713EFFE
AC-CBS0976ACAUTO
CGB-27420AINDE
CGB-52111AINDE
10439967ALANKO
11439967ALANKO
ANM19640XANDEL
ASM1268APEC
AES1239AUTOELECTRO
NES1239AUTOELECTRO
SBO116AUTOTEAM
SBO116AAUTOTEAM
STA0061RBOVEZ
CST10116ASCASCO
CST10116GSCASCO
3845CEVAM
328037102DRI
11857EAI
STR00279ELECTROLOG
STR1400ELECTROLOG
STR79154ELECTROLOG
25-2111ELSTOCK
EZ0370ELTA AUTOMOTIVE
220132ERA
11017420EUROTEC
103644FARCOM
193066FEBI BILSTEIN
SG0405GHIBAUDI
GS109055-AGPARTS
CS976HC PARTS
42017420HERTH+BUSS
10010116AVITAB AUTOMOTIVE
10010116OVITAB AUTOMOTIVE
STB0976KRAUF
10976KUHNER
10976BKUHNER
10976DKUHNER
10976LKUHNER
10976VKUHNER
331128LOGISTIK
LRT00139LUCAS
LRT139LUCAS
5010011MEAT & DORIA
NPANSM1268NAPA
88213315POWERMAX
130.521.102.010PSH
130.521.102.210PSH
130.521.102.215PSH
130.521.102.310PSH
130.521.102.311PSH
130.521.102.340PSH
130.521.102.550PSH
130.521.102.770PSH
QRS1010QUINTON HAZELL
20401611BNREAL
20401611OEREAL
2S0035RIDEX
RNL1742RNL
6010116.0SANDO
6010116.1SANDO
S12BH0066A2SIDAT
MAV6440SIOM
OP9019SNRA
STX200025STARDAX
STX200025RSTARDAX
SKSTR-0330034STARK
SX2040STARLINE
857ST11STARTCAR
ST00783TMI
F042S02163UNIPOINT
31139NWAI / TRANSPO
31139RWAI / TRANSPO
WG2170237WILMINK GROUP
BOS0001109068WOODAUTO
DENDSN3017WOODAUTO
STR50022WOODAUTO
Convient pour :
OPEL Zafira 2.2 DTi [Y22DTR] 01.2002-06.2005
OPEL Zafira 2.2 DTi 16V [Y22DTR] 01.2002-06.2005
OPEL Vectra 2.0 16V [X20DTL] 11.1996-06.2000
OPEL Vectra 2.0 16V [X20DTL] 11.1996-04.2002
OPEL Vectra 2.0 DTi [Y20DTH] 10.2003-
OPEL Vectra 2.0 DTi 16V [Y20DTH] 04.2002-
OPEL Vectra 2.0 DTi 16VTS [Y20DTH] 08.2002-
OPEL Vectra 2.0 TD 16V [X20DTH] 06.1997-07.2003
OPEL Vectra 2.0 TD 16V [X20DTH] 06.1997-04.2002
OPEL Vectra 2.0 TD 16V [Y20DTH] 06.1997-04.2002
OPEL Vectra 2.0 TD 16V [Y20DTH] 06.1997-07.2003
OPEL Astra 2.0 [X20DTL] 02.1998-01.2005
OPEL Astra 2.0 [X20DTL] 02.1998-
OPEL Vectra 2.2 DTi [Y22DTR] 09.2000-04.2002
OPEL Astra 2.0 [Y20DTL] 02.1998-01.2005
OPEL Vectra 2.2 DTi [Y22DTR] 10.2003-
OPEL Vectra 2.2 DTi [Y22DTR] 10.2003-06.2008
OPEL Astra 2.0 [Y20DTL] 09.2000-06.2004
OPEL Signum 2.0 DTi [Y20DTH] 05.2003-
OPEL Astra 2.0 DTi 16V [X20DTH] 08.1999-01.2005
OPEL Astra 2.0 DTi 16V [X20DTH] 08.1999-07.2004
OPEL Vectra 2.2 DTi 16V [Y22DTR] 09.2000-04.2002
OPEL Vectra 2.2 DTi 16V [Y22DTR] 09.2000-07.2003
OPEL Astra 2.0 DTi 16V [Y20DTH] 08.1999-01.2005
OPEL Signum 2.2 DTi [Y22DTR] 05.2003-
OPEL Vectra 2.2 DTi 16VTS [Y22DTR] 08.2002-
OPEL Vectra 2.2 DTi 16VTS [Y22DTR] 08.2002-06.2008
OPEL Signum 2.2 DTi 16V [Y22DTR] 05.2003-06.2008
OPEL Frontera 2.2 DTi [Y22DTH] 09.2002-
OPEL Zafira 2.0 Di 16V [X20DTL] 10.1999-06.2005
OPEL Omega 2.0 DTi 16V [X20DTH] 09.1997-09.2000
OPEL Astra 2.2 DTi [Y22DTR] 09.2002-05.2005
OPEL Astra 2.2 DTi [Y22DTR] 09.2002-01.2005
OPEL Astra 2.2 DTi [Y22DTR] 09.2002-07.2004
OPEL Zafira 2.0 DTi 16V [Y20DTH] 09.2000-06.2005
OPEL Astra 2.2 DTi [Y22DTR] 09.2002-10.2005
OPEL Omega 2.2 DTi 16V [Y22DTH] 09.2000-07.2003
OPEL Sintra 2.2 TD [X22DTH] 07.1997-04.1999
SAAB 9-3 2.2 TD [D223L] 09.2002-
SAAB 9-3 2.2 TiD [D223L] 11.2000-09.2002
SAAB 9-5 2.2 TiD [D223L] 03.2002
VAUXHALL Vectra 2.0 DTi 16V [Y20DTH] 06.1997-
VAUXHALL Vectra 2.0 DTi 16V [Y20DTH] 04.2002-
VAUXHALL Vectra 2.0 DTi 16V [Y20DTH] 10.2003-
VAUXHALL Vectra 2.2 DTi [Y22DTR] 04.2002-10.2008
VAUXHALL Astra Mk 2.0 DTi 16V [X20DTH] 08.1999-05.2005
VAUXHALL Vectra 2.2 DTi 16V [Y22DTR] 09.2000-
VAUXHALL Astra Mk 2.0 DTi 16V [X20DTH] 08.1999-
VAUXHALL Vectra 2.2 DTi 16V [Y22DTR] 10.2003-
VAUXHALL Astra Mk 2.0 DTi 16V [Y20DTH] 09.2000-
VAUXHALL Sintra 2.2 DTi [X22DTH] 07.1997-04.1999
VAUXHALL Vectra 2.2 DTi 16VTS [Y22DTR] 04.2002-
VAUXHALL Astra Mk 2.2 DTi [Y22DTR] 09.2002-05.2005
VAUXHALL Zafira 2.0 Di 16V [X20DTL] 10.1999-
VAUXHALL Zafira 2.0 DTi 16V [Y20DTH] 04.1999-
VAUXHALL Astra 2.0 [X20DTL] 02.1998-05.2005
VAUXHALL Astra 2.0 [X20DTL] 02.1998-
VAUXHALL Astra 2.0 [X20DTL] 09.1998-
VAUXHALL Astra 2.0 [Y20DTL] 02.1998-
VAUXHALL Astra 2.0 [Y20DTL] 02.1998-05.2005
VAUXHALL Astra 2.0 [Y20DTL] 09.1998-
VAUXHALL Frontera 2.2 DTi [X22DTH] 10.1998-
VAUXHALL Frontera 2.2 DTi [Y22DTH] 10.1998-
VAUXHALL Vectra 2.0 16V [X20DTL] 11.1996-
VAUXHALL Omega 2.0 DTi 16V [X20DTH] 10.1998-09.2000
VAUXHALL Frontera 2.2 DTi [Y22DTH] 09.2000-10.2004
VAUXHALL Vectra 2.0 Di 16V [X20DTL] 11.1996-
VAUXHALL Astravan Mk 2.0 Di [X20DTL] 08.1998-08.2006
VAUXHALL Omega 2.2 DTi 16V [Y22DTH] 09.2000-
VAUXHALL Vectra 2.0 DTi [Y20DTH] 04.2002-10.2008
VAUXHALL Omega 2.2 DTi 16V [Y22DTH] 09.2000-07.2003
VAUXHALL Astravan Mk 2.0 DTi [Y20DTH] 04.2004-08.2006
VAUXHALL Vectra 2.0 DTi 16V [X20DTH] 06.1997
