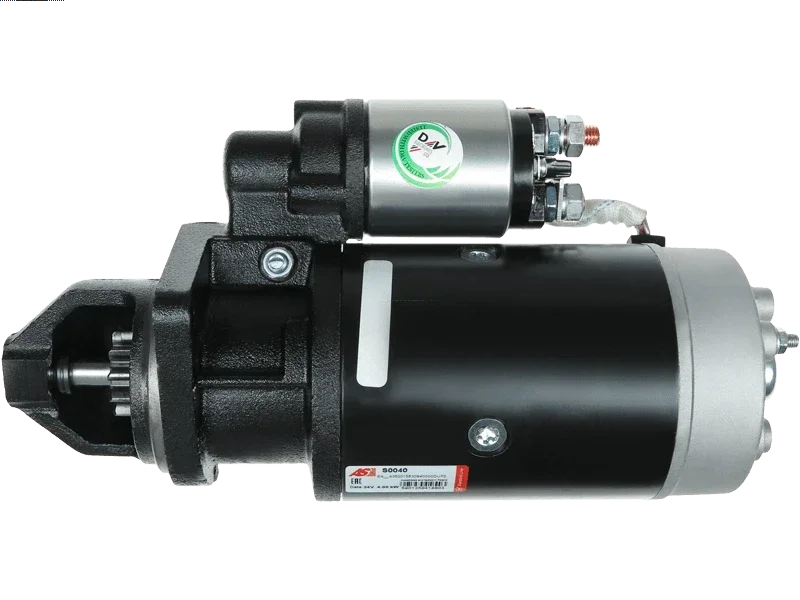

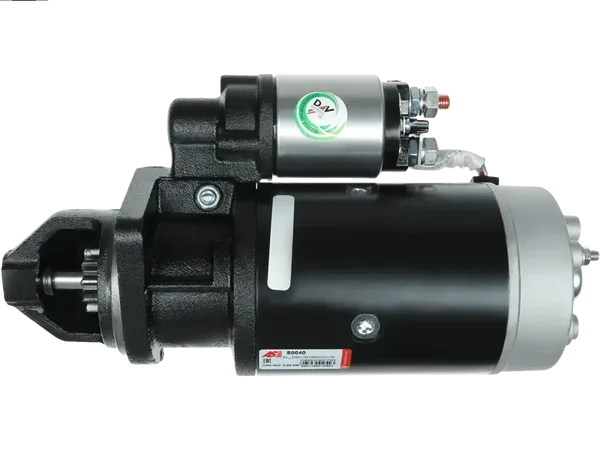

Démarreur Bosch 0001368056
Démarreur Bosch 0001368056
Référence : S0040
Référence OE : 0001368056
EAN : 5901259418903
Caractéristiques :
Tension [ V ] 24
Puissance [ kW ] 4.00
Rotation du demarreur CW
Taille A [ mm ] 89.00
Taille B [ mm ] 28.00
Nombre de dents [ qty. ] 11
Nombre de dents (s'insère dans) [ qty. ] 11
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 0
L.1 [ mm ] 341.00
O.1 [ mm ] 94.50
O.2 [ mm ] 127.50
O.3 [ mm ] 81.50
C.1 [ mm ] 10.50
C.2 [ mm ] 10.50
C.3 [ mm ] 10.50
Références démarreurs compatibles :
0001368056BOSCHListe
0001368305BOSCHListe
0001368310BOSCHListe
0001368317BOSCHListe
0986013720BOSCH
0986017870BOSCH
B001816592BOSCHListe
113468CARGO
1516780RDAF
19024286DELCO
DRS3720DELCO
DRS7870DELCO
F926900060130FENDT
8EA726219-001HELLA
11.130.626ISKRA / LETRIKA
11.131.085ISKRA / LETRIKA
11.131.144ISKRA / LETRIKA
AZJ3199ISKRA / LETRIKAListe
AZJ3374ISKRA / LETRIKAListe
AZJ3388ISKRA / LETRIKAListe
IS0626ISKRA / LETRIKA
72735984MAHLE
MS356MAHLEListe
51.26201-9118MAN
51262017085MANListe
51262017118MANListe
51262017143MANListe
51262017152MANListe
51262017162MAN
51262017167MAN
51262017189MAN
51262017216MAN
51262017217MAN
51262019118MAN
51262019143MANListe
860818PRESTOLITE
455622VALEO
458343VALEO
PRSS0623EFFE
STRS0623EFFE
CGB-23720AINDE
CGB-98305RAINDE
ANM15940XANDEL
AES7165AUTOELECTRO
CST10703ASCASCO
CST10703ESCASCO
8637CEVAM
33899EAI
STR1379ELECTROLOG
STR7910ELECTROLOG
45-1154ELSTOCK
45-2308ELSTOCK
220300ERA
8813720FRIESEN
CS595HC PARTS
10595KUHNER
28.0595LAUBER
28.0595MLAUBER
LRS00765LUCAS
LRS765LUCAS
81388310MONARK
PTC-4028POWER TRUCK
551.004.113.010PSH
551.004.113.016PSH
551.004.113.018PSH
551.004.113.098PSH
551.004.113.311PSH
551.004.113.608PSH
551.004.113.770PSH
20401307BNREAL
20401307ELREAL
6010703.0SANDO
6010703.3SANDO
MAV127030SIOM
STX210206STARDAX
STX210206RSTARDAX
30104NWAI / TRANSPO
STR22084WOODAUTO
Convient pour :
MAN 10.150 4.6 [D0824LFO] 02.1995-01.1996
MAN 8.150 4.6 [D0824LFO] 02.1995-07.1998
MAN 8.163 4.6 [D0824LFL09] 03.1997-01.2000
MAN 10.150 5.7 [D0226MF] 05.1990-10.1993
MAN 9.150 5.7 [D0226MF] 05.1990-10.1993
MAN NL 222 6.9 [D0826LUH12] 11.1995-09.2001
MAN NG 272 6.9 [D0826LUH01] 08.1992-09.1995
MAN 18.224 6.9 [D0826LFL10] 08.1995-09.2001
MAN 18.264 6.9 [D0826LF17] 08.1995-09.2001
MAN 14.264 6.9 [D0826LF17] 08.1995-09.2001
MAN 10.150 6.9 [D0826GF01] 09.1987-10.1993
MAN 10.163 4.6 [D0824LFL02] 05.1994-12.1995
MAN 10.150 6.9 [D0826GF03] 09.1987-10.1993
MAN 14.232 6.9 [D0826LF/217] 05.1990-04.1995
MAN 14.264 6.9 [D0826LFL09] 08.1995-09.2001
MAN 17.222 6.9 [D0826LF11] 05.1994-06.1996
MAN 18.264 6.9 [D0826LFL09] 08.1995-09.2001
MAN 9.150 6.9 [D0826GF01] 07.1988-10.1993
MAN 14.232 6.9 [D0826LF02] 08.1988-06.1996
MAN 14.232 6.9 [D0826LF06] 08.1988-06.1996
MAN 14.162 4.6 [D0824LF02] 08.1995-06.1996
MAN 14.232 6.9 [D0826LF08] 08.1988-06.1996
MAN 17.192 6.6 [D0826TF] 02.1989-06.1990
MAN 9.163 4.6 [D0824LFL02] 05.1994-12.1995
MAN 10.163 4.6 [D0824LFL06] 05.1994-03.1997
MAN 24.192 6.9 [D0826LF01] 07.1989-06.1996
MAN 9.150 6.9 [D0826GF03] 07.1988-10.1993
MAN EM 223 6.9 [D0826LOH15] 02.1996-09.2001
MAN EL 202 6.9 [D0826LUH03] 01.1993-06.1997
MAN 17.272 6.9 [D0826LF04] 10.1992-05.1995
MAN 24.192 6.9 [D0826LF05] 07.1989-06.1996
MAN 8.150 5.7 [D0226MF] 05.1990-10.1993
MAN NM 152 6.9 [D0826OH02] 05.1990-10.1993
MAN 18.284 6.9 [D0836LF01] 06.1998-01.2000
MAN 24.192 6.9 [D0826LF07] 07.1989-06.1996
MAN 9.163 4.6 [D0824LFL06] 05.1994-03.1997
MAN 17.192 6.9 [D0826LF01] 07.1990-01.1991
MAN 8.100 4.6 [D0824GF01] 09.1987-10.1993
MAN 8.100 4.6 [D0824GF02] 09.1987-10.1993
MAN 9.150 6.9 [D0826GF] 05.1988-10.1992
MAN NM 182 6.9 [D0826LOH01] 05.1990-03.1997
MAN 17.232 6.9 [D0826LF/217] 05.1990-04.1995
MAN 18.232 6.9 [D0826LF02] 09.1990-06.1996
MAN NM 182 6.9 [D0826LOH] 05.1990-03.1997
MAN 17.192 6.9 [D0826LF05] 07.1990-01.1991
MAN 18.232 6.9 [D0826LF06] 09.1990-06.1996
MAN 10.163 4.6 [D0824LFL09] 03.2000-
MAN 14.222 6.9 [D0826LF11] 05.1994-06.1996
MAN 18.192 6.9 [D0826LF01] 09.1990-06.1996
MAN 9.163 4.6 [D0824LFL09] 03.1997-01.2000
MAN 17.232 6.9 [D0826LF02] 05.1990-04.1995
MAN 18.232 6.9 [D0826LF08] 09.1990-06.1996
MAN 8.150 6.9 [D0826GF01] 07.1988-10.1993
MAN EM 223 6.9 [D0826LOH15] 02.1996-09.2001
MAN EL 202 6.9 [D0826LUH03] 01.1993-06.1997
MAN 17.272 6.9 [D0826LF04] 10.1992-05.1995
MAN 24.192 6.9 [D0826LF05] 07.1989-06.1996
MAN 8.150 5.7 [D0226MF] 05.1990-10.1993
MAN NM 152 6.9 [D0826OH02] 05.1990-10.1993
MAN 18.284 6.9 [D0836LF01] 06.1998-01.2000
MAN 24.192 6.9 [D0826LF07] 07.1989-06.1996
MAN 9.163 4.6 [D0824LFL06] 05.1994-03.1997
MAN 17.192 6.9 [D0826LF01] 07.1990-01.1991
MAN 8.100 4.6 [D0824GF01] 09.1987-10.1993
MAN 8.100 4.6 [D0824GF02] 09.1987-10.1993
MAN 9.150 6.9 [D0826GF] 05.1988-10.1992
MAN NM 182 6.9 [D0826LOH01] 05.1990-03.1997
MAN 17.232 6.9 [D0826LF/217] 05.1990-04.1995
MAN 18.232 6.9 [D0826LF02] 09.1990-06.1996
MAN NM 182 6.9 [D0826LOH] 05.1990-03.1997
MAN 17.192 6.9 [D0826LF05] 07.1990-01.1991
MAN 18.232 6.9 [D0826LF06] 09.1990-06.1996
MAN 10.163 4.6 [D0824LFL09] 03.2000-
MAN 14.222 6.9 [D0826LF11] 05.1994-06.1996
MAN 18.192 6.9 [D0826LF01] 09.1990-06.1996
MAN 9.163 4.6 [D0824LFL09] 03.1997-01.2000
MAN 17.232 6.9 [D0826LF02] 05.1990-04.1995
MAN 18.232 6.9 [D0826LF08] 09.1990-06.1996
MAN 8.150 6.9 [D0826GF01] 07.1988-10.1993
MAN EM 223 6.9 [D0826LUH12] 02.1996-09.2001
MAN 17.192 6.9 [D0826LF07] 07.1990-01.1991
MAN 18.192 6.9 [D0826LF05] 09.1990-06.1996
MAN 10.224 6.9 [D0826LFL03] 01.1995-05.2000
MAN 17.232 6.9 [D0826LF06] 05.1990-04.1995
MAN 18.192 6.9 [D0826LF07] 09.1990-06.1996
MAN EL 202 6.9 [D0826LUH12] 01.1993-06.1997
MAN 17.232 6.9 [D0826LF08] 05.1990-04.1995
MAN NM 192 6.9 [D0826TOH] 05.1990-03.1997
MAN 8.150 6.9 [D0826GF03] 07.1988-10.1993
MAN 9.224 6.9 [D0826LFL03] 05.1994-09.2001
MAN 25.224 6.9 [D0826LF15] 08.1995-03.1997
MAN EL 202 6.9 [D0826LUH] 01.1993-06.1997
MAN 25.224 6.9 [D0826LF18] 08.1995-01.2000
MAN 8.220 6.9 [D0826LFL03] 04.1995-09.2001
MAN 8.150 6.9 [D0826GF] 07.1988-10.1993
MAN 12.232 6.9 [D0826LF02] 08.1988-06.1996
MAN 12.262 6.9 [D0826LF13] 08.1995-06.1996
MAN NM 222 6.9 [D0826LOH15] 02.1996-07.1998
MAN 14.224 6.9 [D0826LF15] 08.1995-09.2001
MAN SM 152 6.9 [D0826OH02] 11.1987-04.1994
MAN 12.232 6.9 [D0826LF06] 08.1988-06.1996
MAN 12.232 6.9 [D0826LF08] 08.1988-06.1996
MAN EL 222 6.9 [D0826LUH03] 11.1993-09.2001
MAN 14.224 6.9 [D0826LF18] 08.1995-09.2001
MAN 24.262 6.9 [D0826LF13] 08.1995-06.1996
MAN SM 182 6.9 [D0826LOH01] 11.1987-02.1995
MAN 8.113 4.6 [D0824LFL04] 08.1995-05.2000
MAN 14.224 6.9 [D0826LFL03] 08.1995-09.2001
MAN 8.113 4.6 [D0824LFL08] 03.1997-09.2001
MAN NM 223 6.9 [D0826LOH15] 02.1996-01.2000
MAN SM 182 6.9 [D0826TOH] 11.1987-02.1995
MAN EL 222 6.9 [D0826LUH12] 11.1993-09.2001
MAN 10.220 6.9 [D0826LFL03] 02.1995-02.2001
MAN 14.224 6.9 [D0826LFL10] 08.1995-09.2001
MAN NL 202 6.9 [D0826LUH03] 04.1994-03.1997
MAN NL 262 6.9 [D0826LUH] 04.1994-03.1997
MAN 14.192 6.6 [D0826TF] 08.1988-06.1990
MAN SM 192 6.9 [D0826LOH01] 11.1987-02.1995
MAN 12.222 6.9 [D0826LF11] 05.1994-06.1996
MAN NM 223 6.9 [D0826LUH12] 02.1996-01.2000
MAN 14.192 6.9 [D0826LF01] 07.1990-06.1996
MAN 15.284 6.9 [D0836LF01] 06.1998-01.2000
MAN 14.192 6.9 [D0826LF05] 07.1990-06.1996
MAN 14.272 6.9 [D0826LF04] 10.1992-06.1996
MAN NL 202 6.9 [D0826LUH12] 04.1994-03.1997
MAN NG 262 6.9 [D0826LUH01] 08.1992-09.1995
MAN 14.192 6.9 [D0826LF07] 07.1990-06.1996
MAN 24.222 6.9 [D0826LF11] 05.1994-06.1996
MAN 8.163 4.6 [D0824LFL02] 01.1995-09.2001
MAN SM 192 6.9 [D0826TOH] 11.1987-02.1995
MAN 18.222 6.9 [D0826LF11] 05.1994-06.1996
MAN EL 262 6.9 [D0826LUH] 04.1994-09.2001
MAN 12.152 6.9 [D0826F01] 12.1988-05.1994
MAN 6.100 4.6 [D0824GF01] 09.1987-10.1993
MAN NL 263 6.9 [D0826LUH] 04.1994-03.1997
MAN 12.152 6.9 [D0826F02] 12.1988-05.1994
MAN 6.100 4.6 [D0824GF02] 09.1987-10.1993
MAN 12.192 6.9 [D0826LF01] 07.1990-06.1996
MAN 6.100 4.6 [D0824GF] 09.1987-10.1993
MAN 14.152 4.6 [D0824LF01] 05.1994-06.1996
MAN 12.192 6.9 [D0826LF05] 07.1990-06.1996
MAN 18.262 6.9 [D0826LF13] 08.1995-06.1996
MAN 8.90 3.8 [D0224MF] 07.1983-09.1987
MAN 10.136 5.7 [D0226MF] 09.1981-09.1987
MAN 24.232 6.9 [D0826LF/217] 05.1990-04.1995
MAN 8.163 4.6 [D0824LFL06] 05.1994-03.1997
MAN 12.272 6.9 [D0826LF04] 10.1992-06.1996
MAN 8.136 5.7 [D0226MF] 07.1983-07.1988
MAN 12.192 6.9 [D0826LF07] 07.1990-06.1996
MAN 24.232 6.9 [D0826LF02] 07.1989-06.1996
MAN 14.152 6.9 [D0826F01] 12.1988-05.1994
MAN 24.272 6.9 [D0826LF04] 10.1992-06.1996
MAN NL 202 6.9 [D0826LUH] 04.1994-03.1997
MAN 14.152 6.9 [D0826F02] 12.1988-05.1994
MAN 24.232 6.9 [D0826LF06] 07.1989-06.1996
MAN 9.153 4.6 [D0824LFL01] 10.1993-12.1995
MAN 14.262 6.9 [D0826LF13] 08.1995-06.1996
MAN 24.232 6.9 [D0826LF08] 07.1989-06.1996
MAN 9.153 4.6 [D0824LFL05] 08.1995-06.1996
MAN 9.136 5.7 [D0226MF] 10.1979-08.1988
MAN 8.163 4.6 [D0824LFL07] 08.1995-03.2001
MAN 9.170 5.7 [D0226MCFO/170] 02.1989-10.1993
MAN 14.284 6.9 [D0836LF01] 06.1998-01.2000
MAN 18.224 6.9 [D0826LF17] 08.1995-09.2001
MAN 18.272 6.9 [D0826LF04] 10.1992-06.1996
MAN EM 192 6.9 [D0826LOH06] 10.1993-06.1997
MAN NL 222 6.9 [D0826LUH03] 11.1995-09.2001
MAN 18.224 6.9 [D0826LF18] 08.1995-09.2001
MAN 6.90 3.8 [D0224MF] 07.1983-09.1987
MAN 8.224 6.9 [D0826LFL03] 08.1994-09.2001
MAN 8.170 5.7 [D0226MCFO/170] 02.1989-10.1993
MAN 18.224 6.9 [D0826LFL03] 08.1995-09.2001
MAN 25.264 6.9 [D0826LF17] 08.1995-09.2001
