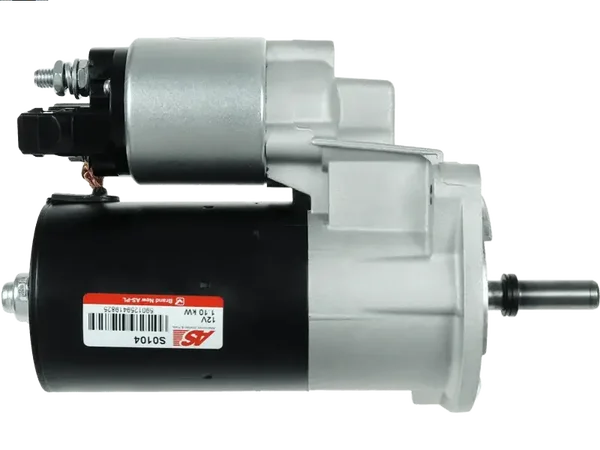

Démarreur Bosch 0001107025
Démarreur Bosch 0001107025
Référence : S0104
Référence OE : 0001107025
EAN: 5901259419825
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.10
Rotation du demarreur CW
Taille A [ mm ] 82.00
Taille B [ mm ] 2.00
Nombre de dents [ qty. ] 9
Nombre de dents (s'insère dans) [ qty. ] 9
Nombre d'ouvertures dans la tete [ qty. ] 4
Nombre de trous filetes [ qty. ] 2
L.1 [ mm ] 234.00
O.1 [ mm ] 74.00
O.2 [ mm ] 30.00
O.3 [ mm ] 58.00
O.4 [ mm ] 104.00
C.1 [ mm ] M8x1.25
C.2 [ mm ] 8.50
C.3 [ mm ] 10.00
C.4 [ mm ] M8x1.25
Références démarreurs compatibles :
0001107025BOSCHListe
0001107026BOSCHListe
0001107103BOSCHListe
0001107104BOSCHListe
0331303147647BOSCH
0986016800BOSCH
112307CARGO
DRS6800DELCO
8EA011610-551HELLA
8EA732659-001HELLA
11.139.327ISKRA / LETRIKA
AZE2147ISKRA / LETRIKA
IS9327ISKRA / LETRIKAListe
943251340MAGNETI MARELLI
20500892PRESTOLITE
S1016BPRESTOLITE
455728VALEOListe
036911023QVW
036911023SVW
036911023SVVW
036911023SXVW
036911025BVW
085911023BVW
085911023BXVW
085911023JVW
36911023SVW
36911023SVVW
36911023SXVW
36911025BVW
85911023BVW
85911023BXVW
PRSS1173EFFE
STRS1173EFFE
ANM19020XANDEL
AES8192AUTOELECTRO
STA0162RBOVEZ
CST10112ASCASCO
3811CEVAM
11763EAI
STR1324ELECTROLOG
25-2049ELSTOCK
220128ERA
8016800FRIESEN
CS880HC PARTS
42016800HERTH+BUSS
STB0880KRAUF
10880KUHNER
22.0880LAUBER
331032LOGISTIK
LRS00892LUCAS
LRS892LUCAS
8213336POWERMAX
88213336POWERMAX
300.520.094.010PSH
300.520.094.050PSH
300.520.094.210PSH
300.520.094.215PSH
300.520.094.460PSH
300.520.094.461PSH
300.520.094.608PSH
300.520.094.968PSH
20401211BNREAL
RNL1680RNL
6010112.0SANDO
S12BH0082A2SIDAT
MAV6680SIOM
STX200065STARDAX
STX200065RSTARDAX
STX200100STARDAX
STX200100RSTARDAX
30892NWAI / TRANSPO
30892RWAI / TRANSPO
STR50036WOODAUTO
Convient pour :
SEAT Ibiza 1.4 16V [APE] 05.1999-06.2000
SEAT Ibiza 1.4 16V [AQQ] 08.1999-07.2000
SEAT Ibiza 1.4 16V [AUA] 05.2000-05.2002
SEAT Ibiza 1.4 16V [AUB] 07.2000-05.2002
SEAT Ibiza 1.4 i [ABD] 09.1993-12.1995
SEAT Ibiza 1.4 i [AEX] 12.1995-12.1997
SEAT Ibiza 1.4 i [AKV] 12.1997-10.1999
SEAT Ibiza 1.4 i [APQ] 12.1997-10.1999
SEAT Cordoba 1.0 [ALD] 06.1999-10.2002
SEAT Ibiza 1.4 i 16V [AFH] 09.1996-08.1999
SEAT Cordoba 1.0 [ANV] 06.1999-10.2002
SEAT Cordoba 1.6 [ALM] 09.1997-08.2002
SEAT Cordoba 1.0 [AUC] 06.1999-10.2002
SEAT Cordoba 1.0 16V [AST] 05.2000-10.2002
SEAT Cordoba 1.0 16V [AVZ] 05.2000-10.2002
SEAT Ibiza 1.6 i [ABU] 03.1993-07.1994
SEAT Cordoba 1.0 i [AER] 09.1996-06.1999
SEAT Ibiza 1.6 i [AEE] 03.1997-12.1998
SEAT Ibiza 1.6 i [ALM] 09.1997-05.2002
SEAT Cordoba 1.4 [AKK] 06.1999-12.2002
SEAT Arosa 1.4 [AEX] 02.1997-11.1997
SEAT Arosa 1.4 [AKK] 01.1999-10.2000
SEAT Cordoba 1.4 [AUD] 06.1999-12.2002
SEAT Arosa 1.4 [AKV] 05.1997-09.1999
SEAT Arosa 1.4 [ANW] 01.1999-10.2000
SEAT Cordoba 1.4 16V [APE] 06.1999-06.2000
SEAT Arosa 1.4 [APQ] 12.1997-08.1998
SEAT Cordoba 1.4 16V [AQQ] 02.2000-10.2002
SEAT Arosa 1.4 [AUD] 09.2000-06.2004
SEAT Ibiza 1.0 [ALD] 05.1999-05.2002
SEAT Arosa 1.4 16V [AFK] 01.1999-09.2000
SEAT Arosa 1.4 16V [ANW] 01.1999-10.2000
SEAT Cordoba 1.4 16V [AUA] 09.1999-06.2000
SEAT Ibiza 1.0 [ANV] 05.1999-07.2000
SEAT Arosa 1.4 16V [AQQ] 05.1999-09.2000
SEAT Arosa 1.4 16V [AUB] 09.2000-06.2004
SEAT Cordoba 1.6 i [ABU] 09.1993-07.1994
SEAT Ibiza 1.0 [AUC] 07.2000-05.2002
SEAT Cordoba 1.4 16V [AUB] 02.2000-10.2002
SEAT Cordoba 1.6 i [AEE] 03.1997-12.1998
SEAT Ibiza 1.4 [AKK] 05.1999-05.2002
SEAT Ibiza 1.4 [ANW] 08.1999-08.2000
SEAT Inca 1.4 16V [AUA] 04.2000-06.2003
SEAT Inca 1.4 i [APQ] 12.1997-06.2003
SEAT Inca 1.4 i [AUD] 09.2000-06.2003
SEAT Ibiza 1.0 16V [AST] 05.2000-02.2002
SEAT Ibiza 1.0 16V [AVZ] 05.2000-02.2002
SEAT Ibiza 1.0 i [AER] 09.1996-10.1999
SEAT Cordoba 1.4 i [ABD] 09.1993-12.1995
SEAT Ibiza 1.4 [AUD] 06.2000-05.2002
SEAT Cordoba 1.4 i [AEX] 12.1995-12.1997
SEAT Cordoba 1.4 i [AKV] 09.1997-12.2002
SEAT Cordoba 1.6 i [ALM] 09.1997-12.2002
SEAT Inca 1.6 i [AEE] 06.1997-09.2000
SEAT Cordoba 1.4 i [ANX] 01.1996-05.1998
SEAT Cordoba 1.4 i [APQ] 12.1997-12.2002
SEAT Cordoba 1.4 i 16V [AFH] 09.1996-06.1999
SEAT Ibiza 1.6 [ALM] 09.1997-02.2002
VW Polo 1.6 GTi 16V [ARC] 10.1999-09.2001
VW Polo 1.6 [AEA] 10.1994-07.1995
VW Polo 1.6 [AEE] 07.1995-12.1999
VW Polo 1.4 [AEX] 08.1995-10.1999
VW Polo 1.4 [AKK] 10.1999-09.2001
VW Polo 1.4 [AKP] 12.1998-09.2001
VW Polo 1.6 [AHS] 03.1996-12.1999
VW Golf III 1.4 [ABD] 08.1992-07.1995
VW Polo 1.4 [AKV] 05.1997-08.1999
VW Caddy 1.4 [AEX] 11.1995-12.1997
VW Polo 1.4 [ANW] 10.1999-08.2000
VW Caddy 1.4 [AKV] 11.1997-09.2000
VW Polo 1.4 [ANX] 12.1997-08.1999
VW Polo 1.6 [ALM] 11.1995-09.2001
VW Caddy 1.4 [APQ] 12.1997-06.2003
VW Caddy 1.4 [AUA] 08.2000-06.2003
VW Caddy 1.4 [AUD] 09.2000-06.2003
VW Polo 1.4 [APQ] 11.1997-12.1999
VW Caddy 1.4 16V [AUA] 08.2000-06.2003
VW Lupo 1.4 [AHW] 01.1999-
VW Lupo 1.4 [AKQ] 10.1998-
VW Polo 1.4 [AUD] 06.2000-09.2001
VW Lupo 1.4 [APE] 05.1999-
VW Lupo 1.4 [AUA] 09.2000-04.2002
VW Lupo 1.4 [AUD] 10.2000-
VW Lupo 1.4 [BBY] 11.2001-
VW Lupo 1.4 16V [AFK] 05.1999-
VW Lupo 1.4 16V [ANM] 05.1999-
VW Lupo 1.4 16V [AQQ] 05.1999-
VW Lupo 1.4 16V [AUB] 05.2000-
VW Polo 1.4 16V [AFH] 04.1996-10.1999
VW Polo 1.4 16V [AFK] 09.1998-09.2001
VW Polo 1.4 16V [AHW] 01.1999-09.2001
VW Polo 1.4 16V [APE] 01.1999-09.2001
VW Golf III 1.6 [ABU] 09.1992-09.1994
VW Polo 1.4 16V [AQQ] 09.1998-09.2001
VW Polo 1.4 16V [AUA] 10.1999-09.2001
VW Polo 1.4 16V [AUB] 10.1999-09.2001
VW Caddy 1.6 [AEE] 06.1996-12.2000
VW Polo 1.6 GTi 16V [AJV] 04.1998-12.1999
VW Vento 1.6 [ABU] 09.1992-09.1994
