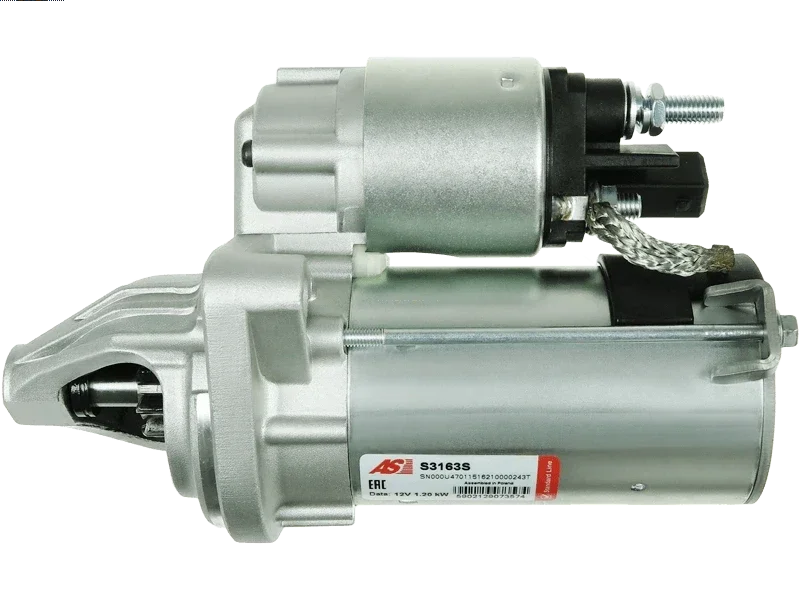

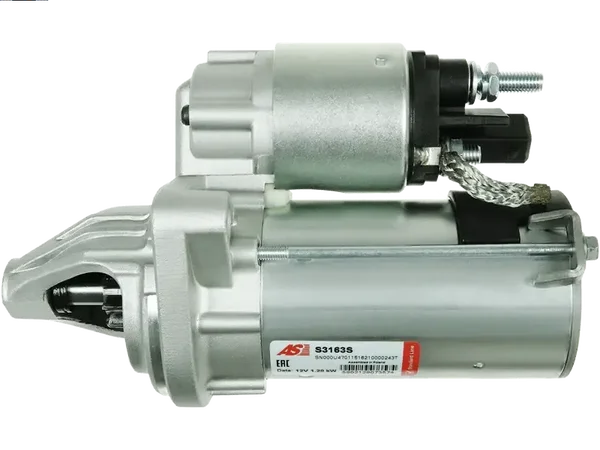

Démarreur Valeo TS12E36
Démarreur Valeo TS12E36
Référence : S3163S
Référence OE : TS12E36
EAN: 5902129073574
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 1.20
Rotation du demarreur CW
Taille A [ mm ] 76.00
Taille B [ mm ] 26.00
Nombre de dents [ qty. ] 9
Nombre d'ouvertures dans la tete [ qty. ] 2
Nombre de trous filetes [ qty. ] 1
L.1 [ mm ] 203.00
O.1 [ mm ] 105.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] 10.50
Balais charbons : -//-
Références démarreurs compatibles :
12412344243BMW
12412354701BMW
12417521116BMW
12417521122BMW
12417521123BMW
12417526236BMW
12417579155BMW
12417579156BMW
12417594292BMW
12417610343BMW
12417610350BMW
12417616500BMW
12417616502BMW
115574CARGO
DRS0523DELCO
428000-4493DENSOListe
DSN1375DENSOListe
8EA012140-051HELLA
6.0183.9IKA
438272VALEOListe
458403VALEOListe
TS12E36VALEOListe
STRS5473EFFE
ANM12743XANDEL
AEY2495AUTOELECTRO
CST15121CASCO
CST15121ASCASCO
CST15121ESCASCO
CST15121GSCASCO
CST15121OSCASCO
CST15121RSCASCO
3193CEVAM
S-6578DIXIE
STR00138ELECTROLOG
25-4167ELSTOCK
220539ERA
SG0567GHIBAUDI
STV3890KRAUF
STV3890ABKRAUF
STV3890BAKRAUF
254601VKUHNER
LRS02495LUCAS
LRS2495LUCAS
5015846MEAT & DORIA
8214260POWERMAX
210.545.092PSH
210.545.092.460PSH
6015121SANDO
S12VA0237SIDAT
S12VA0237A2SIDAT
STX200280STARDAX
STX201388STARDAX
30304NWAI / TRANSPO
30304N-OEWAI / TRANSPO
91-20-3570WILSON
VAL438272WOODAUTO
Convient pour :
BMW 323 2.5 i (E91)[N52B25A] 09.2006-07.2008
BMW 435 3.0 i (F83)[N55B30A] 10.2013-
BMW Z4 3.0 Si (E85)[N52B30A] 01.2006-
BMW 130 3.0 i (E87)[N52B30BF] 03.2005-09.2012
BMW 323 2.5 i (E92)[N52B25BE] 04.2006-02.2012
BMW 435 3.0 i (F83)[N55B30A] 07.2014-
BMW 323 2.5 i (E93)[N52B25A] 03.2007-09.2011
BMW 525 2.5 i (E60)[N52B25A] 07.2005-
BMW 630 3.0 i (E64)[N52B30A] 07.2007
BMW Z4 3.0 Si (E85)[N52B30A] 03.2006-
BMW 130 3.0 i (E87)[N52B30BF] 09.2006-09.2012
BMW 630 3.0 i (E64)[N52B30BF] 07.2007-
BMW 525 2.5 i (E60)[N52B25] 07.2005-
BMW 130 3.0 i (E87)[N52B30B] 03.2005-09.2012
BMW 630 3.0 i (E64)[N52B30B] 07.2007-
BMW 130 3.0 i (E87)[N52B30B] 09.2006-09.2012
BMW 335 3.0 i (E90)[N54B30A] 03.2006-12.2011
BMW 630 3.0 i (E64)[N52B30] 09.2004-
BMW 335 3.0 i (E90)[N54B30A] 09.2006-12.2011
BMW 525 2.5 i (E61)[N52B25A] 07.2005-
BMW 135 3.0 i (E82)[N54B30A] 10.2007-10.2013
BMW X3 3.0 D (F25)[N52B30A] 04.2011-
BMW 135 3.0 i (E82)[N54B30A] 10.2007-
BMW 335 3.0 i (E90)[N54B30A] 10.2006-12.2011
BMW 3 3.0 (E93)[N52B30A] 03.2007-
BMW 335 3.0 i (E90)[N54B30A] 05.2008-10.2011
BMW 3 3.0 (E93)[N52NB30B] 03.2007-
BMW 335 3.0 i (E90)[N55B30A] 09.2006-12.2011
BMW 135 3.0 i (E82)[N55B30A] 10.2007-
BMW 525 2.5 i (E61)[N52B25] 07.2005-
BMW 530 3.0 i (E60)[N52B30A] 07.2005-
BMW 135 3.0 i (E82)[N55B30A] 10.2007-10.2013
BMW 335 3.0 i (E90)[N55B30A] 10.2006-12.2011
BMW 335 3.0 i (E90)[N55B30A] 09.2008-12.2011
BMW X3 3.0 i (E83)[N52B30A] 09.2008-
BMW 135 3.0 i (E88)[N54B30A] 03.2008-
BMW 530 3.0 i (E60)[N52B30] 07.2005-
BMW 335 3.0 i (E91)[N54B30A] 03.2006-05.2012
BMW Activehybrid 3.0 (F01)[N55B30A] 07.2012-
BMW Activehybrid 3.0 (F02)[N55B30A] 07.2012-
BMW 135 3.0 i (E88)[N55B30A] 03.2008-
BMW 325 3.0 i (E90)[N53B30A] 09.2007-12.2011
BMW Activehybrid 3.0 (F03)[N55B30A] 07.2012-
BMW 325 3.0 i (E90)[N53B30A] 09.2008-12.2011
BMW 335 3.0 i (E91)[N54B30A] 09.2008-
BMW Activehybrid 3.0 (F04)[N55B30A] 07.2012-
BMW 530 3.0 i (E61)[N52B30A] 07.2005-
BMW Activehybrid 3.0 (F10)[N55B30A] 09.2011-
BMW 325 3.0 i (E90)[N53B30] 09.2007-12.2011
BMW Activehybrid 3.0 (F18)[N55B30A] 09.2011-
BMW 325 3.0 i (E91)[N53B30A] 09.2007-
BMW Activehybrid 3.0 (F30)[N55B30A] 07.2012-
BMW 335 3.0 i (E91)[N55B30A] 05.2008-05.2012
BMW Activehybrid 3.0 Hybrid (F01)[N55B30A] 07.2012-
BMW 335 3.0 i (E91)[N55B30A] 09.2008-
BMW Activehybrid 3.0 Hybrid (F02)[N55B30A] 07.2012-
BMW 335 3.0 i (E92)[N54B30A] 11.2005-06.2013
BMW 530 3.0 i (E61)[N52B30] 07.2005-
BMW Activehybrid 3.0 Hybrid (F03)[N55B30A] 07.2012-
BMW Activehybrid 3.0 Hybrid (F04)[N55B30A] 07.2012-
BMW 335 3.0 Xi (E90)[N54B30A] 09.2007-12.2011
BMW X5 3.0 (E70)[N55B30A] 09.2010-06.2013
BMW 325 3.0 i (E91)[N53B30] 09.2007-
BMW 330 3.0 i (E90)[N52B30A] 09.2007-12.2011
BMW 335 3.0 i (E92)[N54B30A] 09.2006-
BMW 335 3.0 Xi (E90)[N55B30A] 09.2007-12.2011
BMW 523 2.5 i (E60)[N52B25A] 07.2005-
BMW 530 3.0 i (F10)[N53B30A] 09.2011-
BMW 325 3.0 i (E92)[N51B30A] 09.2008-
BMW 335 3.0 i (E92)[N54B30A] 09.2008-
BMW 530 3.0 i (F11)[N53B30A] 09.2011-
BMW 335 3.0 i (E92)[N55B30A] 11.2005-06.2013
BMW 335 3.0 Xi (E91)[N55B30A] 03.2007-
BMW 325 3.0 i (E92)[N53B30A] 07.2007-
BMW 330 3.0 i (E90)[N52B30BF] 09.2007-12.2011
BMW 330 3.0 i (E90)[N52B30B] 09.2007-12.2011
BMW 325 3.0 i (E92)[N53B30A] 09.2007-
BMW 335 3.0 i (E92)[N55B30A] 09.2008-
BMW 330 3.0 i (E90)[N52B30] 01.2005-12.2011
BMW 335 3.0 i (E92)[N55B30A] 11.2008-06.2013
BMW 330 3.0 i (E90)[N52B30] 01.2005-
BMW 335 3.0 i (E93)[N54B30A] 05.2006-10.2013
BMW 730 3.0 i (F01)[N52B30A] 06.2008-
BMW 325 3.0 i (E92)[N53B30] 09.2007-
BMW 330 3.0 i (E90)[N53B30A] 09.2007-12.2011
BMW 325 3.0 i (E93)[N51B30A] 03.2007-
BMW 523 2.5 i (E60)[N52B25] 07.2005-
BMW 335 3.0 i (E93)[N54B30A] 03.2007-
BMW 730 3.0 i (F01)[N52B30BF] 06.2008-
BMW 325 3.0 i (E93)[N53B30A] 10.2006-
BMW 330 3.0 i (E90)[N53B30A] 09.2008-12.2011
BMW 523 2.5 i (E60)[N53B25A] 01.2007-03.2010
BMW 335 3.0 i (E93)[N54B30B] 03.2007-
BMW X5 3.0 i (E70)[N55B30A] 02.2012-06.2013
BMW 325 3.0 i (E93)[N53B30A] 03.2007-
BMW 335 3.0 i (E93)[N55B30A] 05.2006-10.2013
BMW 525 2.5 Xi (E60)[N52B25A] 07.2005-
BMW 523 2.5 i (E61)[N52B25A] 07.2005-
BMW 525 2.5 Xi (E61)[N52B25A] 07.2005-
BMW 330 3.0 i (E91)[N53B30A] 09.2007-
BMW 730 3.0 i (F02)[N52B30A] 06.2008-
BMW X5 3.0 Si (E70)[N52B30A] 02.2007-09.2008
BMW 325 3.0 i (E93)[N53B30] 03.2007-
BMW 335 3.0 i (E93)[N55B30A] 03.2007-
BMW X5 3.0 Si (E70)[N52B30] 02.2007-09.2008
BMW 730 3.0 i (F02)[N52B30BF] 06.2008-
BMW 330 3.0 i (E92)[N52B30A] 08.2006-
BMW 530 3.0 Xi (E60)[N52B30A] 07.2005-
BMW 335 3.0 i (F30)[N55B30A] 10.2011-
BMW 335 3.0 i (F30)[N55B30A] 10.2011-07.2013
BMW 523 2.5 i (E61)[N52B25] 07.2005-
BMW 523 2.5 i (F10)[N52B25A] 03.2010-
BMW 530 3.0 Xi (E61)[N52B30A] 07.2005-
BMW 523 2.5 i (F11)[N52B25A] 04.2010-12.2011
BMW 730 3.0 i (F03)[N52B30A] 06.2008-
BMW 330 3.0 i (E92)[N53B30A] 03.2007-12.2013
BMW 325 2.5 i (E90)[N52B25A] 01.2006-
BMW 325 3.0 Xi (E90)[N53B30A] 09.2007-12.2011
BMW 330 3.0 i (E92)[N53B30A] 09.2007-
BMW 523 3.0 i (F10)[N53B30A] 12.2009-
BMW 730 3.0 i (F03)[N52B30BF] 06.2008-
BMW 325 3.0 Xi (E91)[N53B30A] 09.2007-
BMW 330 3.0 i (E93)[N52B30A] 03.2007-12.2013
BMW 335 3.0 i (F30)[N55B30A] 07.2013-
BMW 330 3.0 i (E93)[N52B30A] 03.2007
BMW 325 3.0 Xi (E92)[N53B30A] 09.2007-
BMW 330 3.0 i (E93)[N53B30A] 03.2007-
BMW 335 3.0 i (F31)[N55B30A] 01.2012-07.2013
BMW 523 3.0 i (F11)[N53B30A] 09.2010-
BMW 325 2.5 i (E90)[N52B25C] 01.2005-
BMW 730 3.0 i (F04)[N52B30A] 06.2008-
BMW 325 2.5 i (E90)[N52B25] 01.2005-12.2011
BMW 325 2.5 i (E90)[N52B25] 01.2005-
BMW 730 3.0 i (F04)[N52B30BF] 06.2008-
BMW 335 3.0 i (F31)[N55B30A] 07.2013-
BMW 740 3.0 i (F01)[N54B30A] 10.2008-
BMW 125 3.0 i (E82)[N52B30A] 10.2007-
BMW 335 3.0 i (F34)[N55B30A] 03.2013-03.2014
BMW 328 2.0 i (F30)[N20B20A] 10.2011-
BMW 740 3.0 i (F02)[N54B30A] 10.2008-
BMW 325 2.5 i (E92)[N52B25A] 09.2006-12.2013
BMW 325 2.5 i (E92)[N52B25A] 09.2006-
BMW 335 3.0 i (F34)[N55B30A] 07.2013-
BMW 328 2.0 i (F30)[N26B20A] 10.2011-
BMW 335 3.0 i (F35)[N55B30A] 10.2011-07.2013
BMW 335 3.0 i (F35)[N55B30A] 07.2013-
BMW 125 3.0 i (E88)[N52B30A] 03.2008-
BMW 535 3.0 (F07GT)[N55B30A] 09.2010-
BMW Z4 2.5 i (E85)[N52B25A] 01.2006-
BMW 325 2.5 i (E93)[N52B25A] 03.2007-
BMW 335 3.0 i (F80)[N55B30A] 10.2011-07.2013
BMW Z4 2.5 i (E89)[N52B25A] 05.2009-
BMW 330 3.0 Xi (E90)[N52B30A] 01.2005-12.2011
BMW 730 3.0 Li (E65)[N52B30A] 03.2005-
BMW 325 2.5 i (E93)[N52B25] 03.2007-
BMW 330 3.0 Xi (E91)[N52B30A] 01.2005-
BMW 130 3.0 i (E81)[N52B30A] 09.2006-09.2012
BMW 330 3.0 Xi (E91)[N53B30A] 09.2007-
BMW 335 3.0 i (F80)[N55B30A] 07.2013-
BMW 730 3.0 Li (E65)[N52B30] 03.2005-
BMW Z4 2.5 Si (E85)[N52B25A] 01.2006-
BMW 330 3.0 Xi (E92)[N52B30A] 09.2006-
BMW 130 3.0 i (E81)[N52B30BF] 09.2006-09.2012
BMW 435 3.0 i (F32)[N54B30A] 07.2013-
BMW 330 3.0 Xi (E92)[N53B30A] 09.2006-
BMW Z4 3.0 (E89)[N54B30A] 09.2010-
BMW 730 3.0 Li (E66)[N52B30A] 03.2005-
BMW 130 3.0 i (E81)[N52B30B] 09.2006-09.2012
BMW Z4 3.0 i (E89)[N52B30A] 05.2009-
BMW 435 3.0 i (F32)[N55B30A] 07.2013-
BMW 630 3.0 i (E63)[N52B30A] 09.2004
BMW Z4 3.0 i (E89)[N54B30A] 05.2009-
BMW 325 2.5 Xi (E90)[N52B25A] 01.2005-12.2011
BMW X1 3.0 (E84)[N52B30A] 10.2009-
BMW X1 3.0 (E84)[N52B30A] 01.2010-
BMW 130 3.0 i (E87)[N52B30AF] 03.2005-09.2012
BMW 325 2.5 Xi (E90)[N52B25C] 01.2005-12.2011
BMW 730 3.0 Li (E66)[N52B30] 03.2005-
BMW X6 3.0 i (E71)[N54B30A] 09.2008-
BMW 435 3.0 i (F33)[N55B30A] 10.2013-
BMW 630 3.0 i (E63)[N52B30A] 07.2007-
BMW X6 3.0 i (E71)[N55B30A] 09.2008-
BMW 325 2.5 Xi (E91)[N52B25A] 01.2005-
BMW 435 3.0 i (F33)[N55B30A] 07.2014-
BMW X6 3.0 i (E71)[N55B30A] 01.2012-
BMW 435 3.0 i (F33,)[N55B30A] 10.2013-
BMW X6 3.0 i (E72)[N55B30A] 01.2012-
BMW 325 2.5 Xi (E91)[N52B25C] 01.2005-
BMW 528 3.0 i (F10)[N53B30A] 02.2010-
BMW 730 3.0 Li (E67)[N52B30A] 03.2005-
BMW M1 3.0 (E82)[N54B30A] 04.2011-06.2012
BMW 630 3.0 i (E63)[N52B30BF] 07.2007-
BMW 130 3.0 i (E87)[N52B30A] 03.2005-09.2012
BMW 325 2.5 Xi (E92)[N52B25A] 09.2006-
BMW X4 3.0 (F26)[N55B30A] 12.2015-
BMW 630 3.0 i (E63)[N52B30] 09.2004-
BMW 323 2.5 i (E90)[N52B25] 04.2006-06.2007
BMW 325 2.5 Xi (E92)[N52B25C] 09.2006-
BMW 435 3.0 i (F36)[N55B30A] 07.2014-
BMW 130 3.0 i (E87)[N52B30A] 09.2006-09.2012
BMW 730 3.0 Li (E67)[N52B30] 03.2005-
BMW 435 3.0 i (F82)[N55B30A] 07.2013-
BMW 528 3.0 i (F11)[N53B30A] 09.2010-
BMW 630 3.0 i (E64)[N52B30A] 09.2004-
BMW X3 2.5 i (E83)[N52B25A] 09.2008
