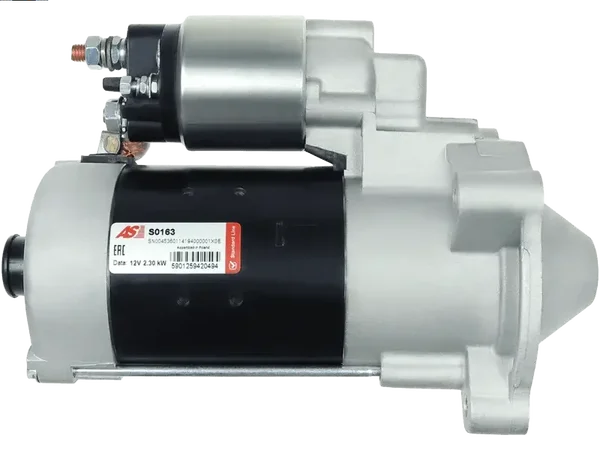

Démarreur Bosch 0001223014
Démarreur Bosch 0001223014
Référence : S0163
Référence OE : 0001223014
EAN: 5901259420494
Caractéristiques :
Tension [ V ] 12
Puissance [ kW ] 2.30
Rotation du demarreur CW
Taille A [ mm ] 72.00
Taille B [ mm ] -6.00
Nombre de dents [ qty. ] 10
Nombre de dents (s'insère dans) [ qty. ] 10
Nombre d'ouvertures dans la tete [ qty. ] 3
Nombre de trous filetes [ qty. ] 3
L.1 [ mm ] 247.00
O.1 [ mm ] 85.00
O.2 [ mm ] 121.00
O.3 [ mm ] 85.00
C.1 [ mm ] M10x1.5
C.2 [ mm ] M10x1.5
C.3 [ mm ] M10x1.5
Balais charbons : BSX192-193
Références démarreurs compatibles :
0001223014BOSCHListe
0986018970BOSCH
114126CARGO
F032114126CARGO
DRS8970DELCO
63984678FIAT
71722353FIAT
9335659780FIAT
96253824FIAT
96356595FIAT
9635659580FIAT
9635659780FIAT
9636559780FIAT
963984678FIAT
9639846780FIAT
9947830FIAT
K9635659580FIAT
K9635659780FIAT
K9636559780FIAT
K9639846780FIAT
8EA012528-371HELLA
8EA738174-001HELLA
063721897010MAGNETI MARELLI
944280189700MAGNETI MARELLI
MQS18970MAGNETI MARELLI
MRS18970MAGNETI MARELLI
5802EAPEUGEOT
5802W7PEUGEOT
5802X9PEUGEOT
5802Y0PEUGEOT
5802Z5PEUGEOT
96356597PEUGEOT
96365597PEUGEOT
96398467PEUGEOT
96398597PEUGEOT
458548VALEO
STRS0603EFFE
CGB-28970AINDE
CGB-53181AINDE
ANM11190XANDEL
AEU1326AUTOELECTRO
CST10504ASCASCO
11985EAI
STR10002ELECTROLOG
STR79188ELECTROLOG
STR79189ELECTROLOG
25-3181ELSTOCK
220117AERA
220117RERA
SG0625GHIBAUDI
GS223014-AGPARTS
SS223014-AGPARTS
STB1326KRAUF
101326KUHNER
331902LOGISTIK
LRS02112LUCAS
LRS2112LUCAS
5010196MEAT & DORIA
88212822POWERMAX
20401405BNREAL
RNL1897RNL
STM909ROLLCO
6010504.0SANDO
S12BH0141A2SIDAT
MAV321740SIOM
STX200017STARDAX
STX200017RSTARDAX
STX200036STARDAX
STX200036RSTARDAX
STX200076STARDAX
STX200076/PRZETSTARDAX
STX200076RSTARDAX
STX200193STARDAX
STX200193RSTARDAX
STX200354STARDAX
STX200452STARDAX
STR50463WOODAUTO
Convient pour :
CITROEN C5 2.0 HDi [RHZ(DW10ATED)] 06.2001-08.2004
CITROEN C8 2.0 HDi [RHD(DW10CB)] 03.2006-
CITROEN C8 2.0 HDi [RHK(DW10UTED4)] 07.2006-
CITROEN C8 2.0 HDi [RHM(DW10ATED4)] 07.2002-
CITROEN C8 2.0 HDi [RHT(DW10ATED4)] 07.2002-
CITROEN C8 2.0 HDi [RHT(DW10ATED4)] 07.2002-12.2002 AT
CITROEN C8 2.0 HDi [RHW(DW10ATED4)] 07.2002
CITROEN C5 2.2 HDi [4HX(DW12TED4)] 03.2001-08.2004
CITROEN Jumper 2.2 HDi [4HY(DW12UTED)] 04.2002-06.2006
CITROEN C8 2.2 HDi [4HW(DW12TED4)] 07.2002-
CITROEN C5 2.2 HDi [4HX(DW12TED4)] 06.2001-08.2004
CITROEN C5 2.0 HDi [RHS(DW10ATED)] 03.2001-08.2004
CITROEN C5 2.0 HDi [RHS(DW10ATED)] 06.2001-08.2004
CITROEN C5 2.0 HDi [RHS(DW10ATED)] 06.2002-08.2004
CITROEN C5 2.0 HDi [RHY(DW10TD)] 03.2001-08.2004
CITROEN C5 2.0 HDi [RHY(DW10TD)] 06.2001-08.2004
CITROEN C5 2.0 HDi [RHZ(DW10ATED)] 03.2001-08.2004
FIAT Ulysse 2.0 D Multijet [RHK] 05.2006-06.2011
FIAT Ulysse 2.0 D Multijet [RHR] 05.2006-06.2011
FIAT Ulysse 2.0 JTD [RHM(DW10ATED4)] 05.2003-08.2006
FIAT Scudo 2.0 D Multijet [DW10BTED4] 01.2007-03.2016
FIAT Scudo 2.0 D Multijet [RHG] 01.2007-03.2016
FIAT Scudo 2.0 D Multijet [RHK] 01.2007-03.2016
FIAT Scudo 2.0 D Multijet [RHR] 01.2007-03.2016
FIAT Scudo 2.0 D Multijet 4x4 [RHG] 01.2007-03.2016
FIAT Scudo 2.0 D Multijet 4x4 [RHK] 01.2007-03.2016
FIAT Scudo 2.0 D Multijet 4x4 [RHR] 01.2007-03.2016
LANCIA Phedra 2.0 D Multijet [RHR(DW10BTED4)] 07.2006-11.2010
LANCIA Phedra 2.0 JTD [RHK(DW10UTED4)] 06.2006-11.2010
LANCIA Phedra 2.0 JTD [RHM(DW10ATED4)] 07.2003-11.2010
LANCIA Phedra 2.2 JTD [4HW(DW12ATED4)] 09.2002-11.2010
PEUGEOT 807 2.0 HDi [RHW(DW10ATED4)] 04.2004-05.2006
PEUGEOT Expert Tepee 2.0 HDi [RHK(DW10UTED4)] 01.2007-03.2016
PEUGEOT 407 SW 2.0 HDi [RHL(DW10BTED4)] 11.2004-10.2007
PEUGEOT 407 SW 2.0 HDi [RHR(DW10BTED4)] 07.2004-12.2010
PEUGEOT 407 SW 2.0 HDi [RHR(DW10BTED4)] 08.2008-12.2010
PEUGEOT Boxer 2.0 HDi [RHV(DW10TD)] 12.2001-06.2006
PEUGEOT Boxer 2.0 HDi [RHV(DW10TD)] 04.2002-06.2006
PEUGEOT Boxer 2.0 HDi [RHV(DW10UTD)] 08.2001-04.2002
PEUGEOT Boxer 2.0 HDi [RHV(DW10UTD)] 12.2001-06.2006
PEUGEOT Boxer 2.0 HDi [RHV(DW10UTD)] 04.2002-06.2006
PEUGEOT Expert 2.0 HDi [RHK(DW10UTED4)] 01.2007-
PEUGEOT Expert 2.0 HDi [RHR(DW10BTED4)] 01.2007-
PEUGEOT Boxer 2.2 HDi [4HY(DW12UTED)] 12.2001-06.2006
PEUGEOT 607 2.0 HDi [RHS(DW10ATED)] 03.2001-09.2004
PEUGEOT 807 2.0 HDi [RHD(DW10CTED4)] 06.2006-
PEUGEOT 407 2.0 HDi [RHL(DW10BTED4)] 11.2004-10.2007
PEUGEOT 607 2.0 HDi [RHZ(DW10ATED)] 05.2000-09.2005
PEUGEOT 407 2.0 HDi [RHR(DW10BTED4)] 05.2004-10.2010
PEUGEOT 807 2.0 HDi [RHK(DW10UTED4)] 02.2006-
PEUGEOT 407 2.0 HDi [RHR(DW10BTED4)] 10.2005-
PEUGEOT 807 2.0 HDi [RHM(DW10ATED4)] 06.2002-05.2006
PEUGEOT 607 2.2 HDi [4HX(DW12TED4)] 02.2000-02.2006
PEUGEOT 407 2.0 HDi [RHR(DW10BTED4)] 06.2009-12.2010
PEUGEOT 807 2.0 HDi [RHR(DW10BTED4)] 06.2006-
PEUGEOT 807 2.0 HDi [RHR(DW10CB)] 06.2006-
PEUGEOT 807 2.0 HDi [RHT(DW10ATED4)] 06.2002-05.2006
PEUGEOT 807 2.0 HDi [RHT(DW10ATED4)] 04.2004-05.2006
PEUGEOT 406 2.2 HDi [4HX(DW12TED4)] 03.2000-05.2004
PEUGEOT 807 2.0 HDi [RHW(DW10ATED4)] 06.2002-05.2006
PEUGEOT 406 2.2 HDi [4HX(DW12TED4)] 03.2000-10.2004
PEUGEOT 406 2.2 HDi [4HX(DW12TED4)] 03.2000-12.2004
